SKU: SSUCP.216

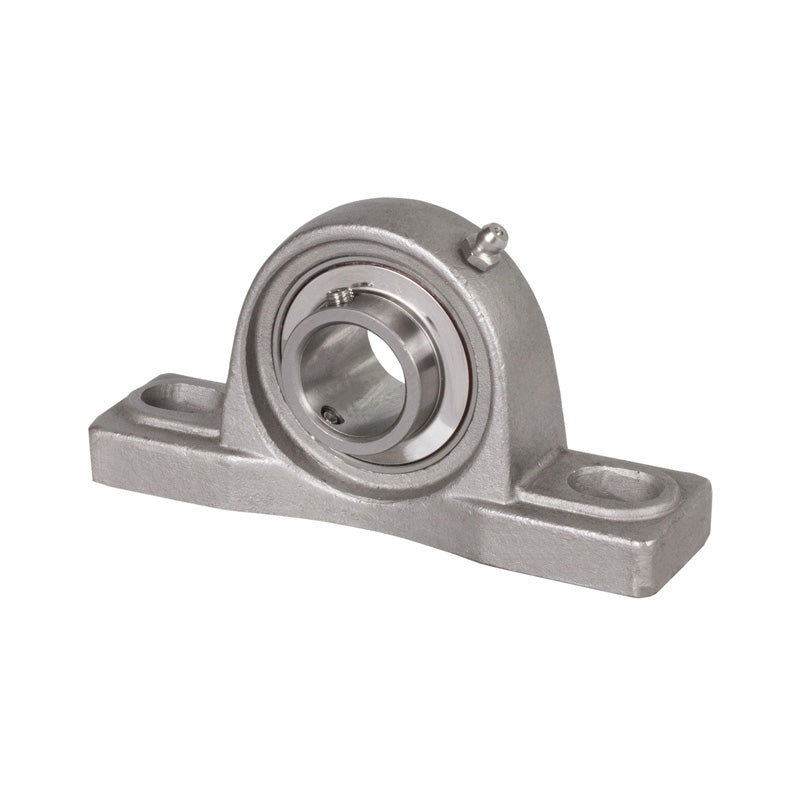

SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
SSUCP216 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
Regular price
Rs. 46,330.74
ex VAT
Regular price
Sale price
Rs. 46,330.74
ex VAT
Equivalent to: NP80
In stock
Price Break
10+
Rs. 41,234.36
19+
Rs. 38,917.82
29+
Rs. 38,454.51
39+
Rs. 37,991.21
49+
Rs. 37,527.90
74+
Rs. 37,064.59
99+
Rs. 34,748.06
199+
Rs. 34,284.75
249+
Rs. 33,821.44
499+
Rs. 33,358.13
999+
Rs. 32,431.52
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP80
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| d | 80mm |
|---|---|
| h | 88.9mm |
| a | 292mm |
| e | 232mm |
| b | 78mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 30mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
| Rec max speed | 2150 rpm |
