SKU: SSUCP.204

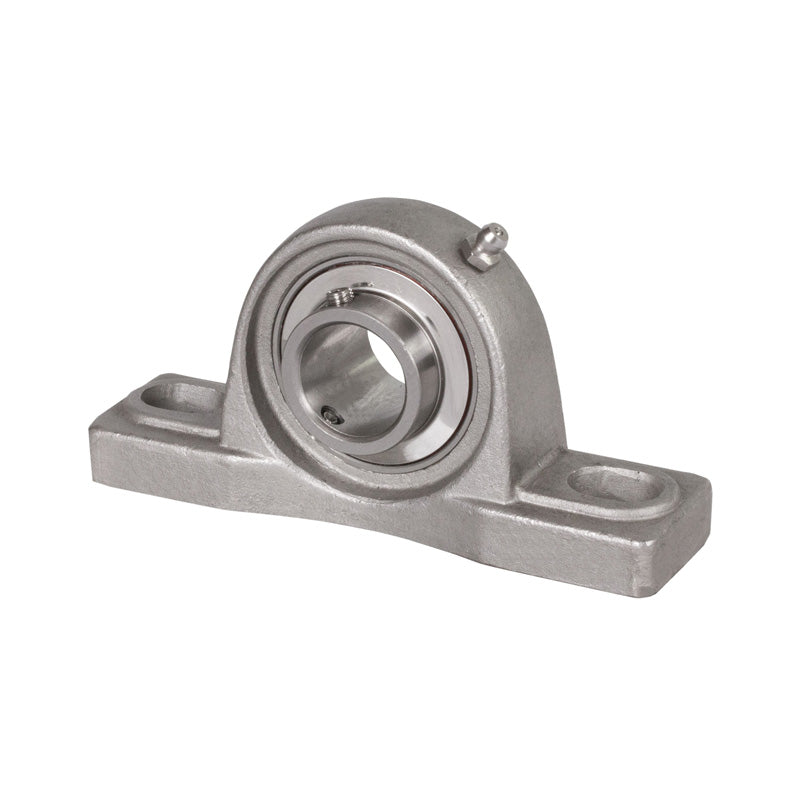

SSUCP204 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
SSUCP204 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
Regular price
Rs. 1,623.28
Regular price
Sale price
Rs. 1,623.28
Taxes included.
Equivalent to: NP20
In stock
Price Break
10+
Rs. 1,444.72
19+
Rs. 1,363.56
29+
Rs. 1,347.32
39+
Rs. 1,331.09
49+
Rs. 1,314.86
74+
Rs. 1,298.62
99+
Rs. 1,217.46
199+
Rs. 1,201.23
249+
Rs. 1,184.99
499+
Rs. 1,168.76
999+
Rs. 1,136.30
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- SSUCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 20mm |
|---|---|
| h | 33.3mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
