SKU: SSUC.212

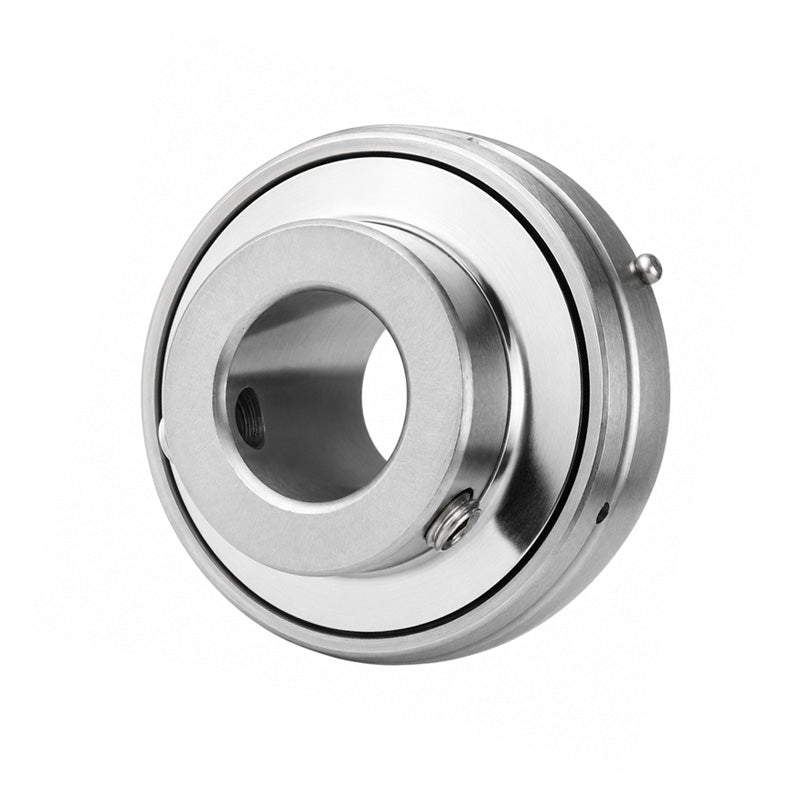

SSUC212 Metric Stainless Steel Bearing Insert with 60mm Bore 110mm Outside Dia
SSUC212 Metric Stainless Steel Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
Rs. 6,663.38
Regular price
Sale price
Rs. 6,663.38
Taxes included.
In stock
Price Break
10+
Rs. 5,930.41
19+
Rs. 5,597.24
29+
Rs. 5,530.61
39+
Rs. 5,463.97
49+
Rs. 5,397.34
74+
Rs. 5,330.70
99+
Rs. 4,997.54
199+
Rs. 4,930.90
249+
Rs. 4,864.27
499+
Rs. 4,797.63
999+
Rs. 4,664.37
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- SSUC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
