SKU: SSUC.210-32

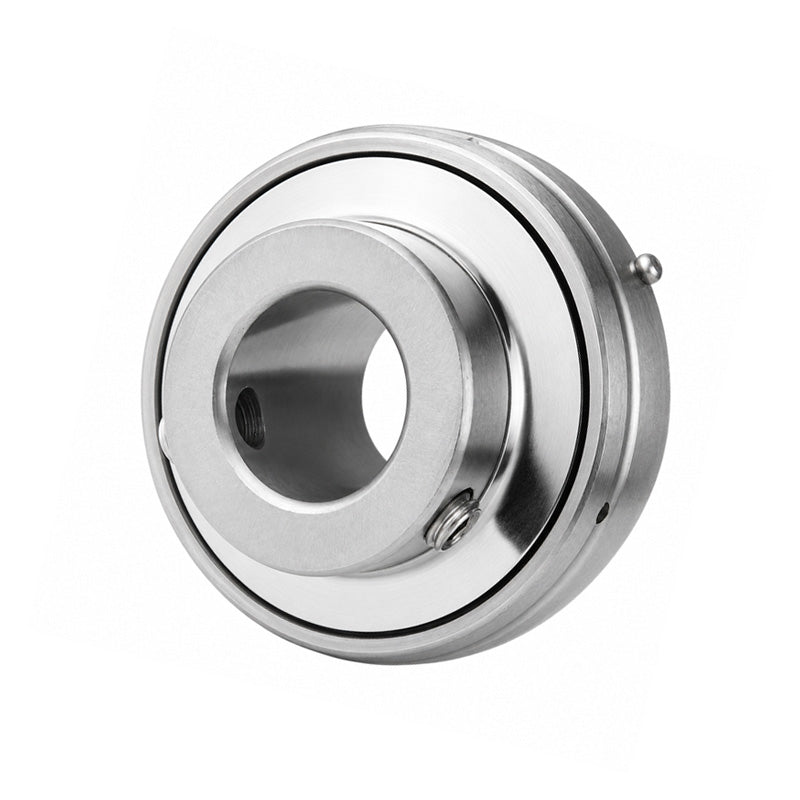

SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
Rs. 3,694.62
Regular price
Sale price
Rs. 3,694.62
Taxes included.
In stock
Price Break
10+
Rs. 3,288.21
19+
Rs. 3,103.48
29+
Rs. 3,066.53
39+
Rs. 3,029.59
49+
Rs. 2,992.64
74+
Rs. 2,955.70
99+
Rs. 2,770.97
199+
Rs. 2,734.02
249+
Rs. 2,697.07
499+
Rs. 2,660.13
999+
Rs. 2,586.23
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- SSUC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
