SKU: SSUC.206-18

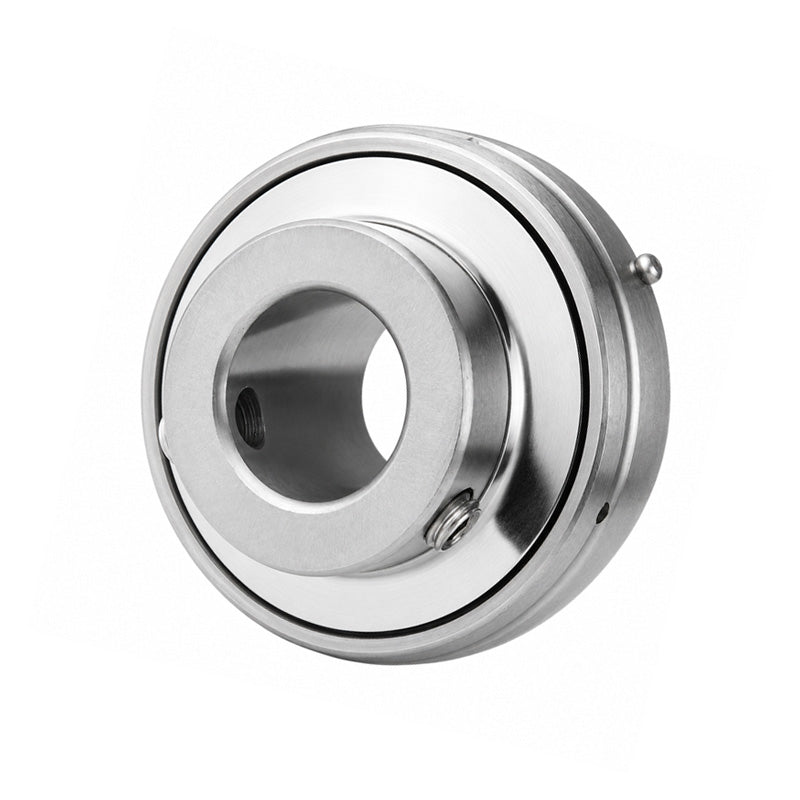

SSUC206-18 Imperial Stainless Steel Bearing Insert with 1-1/8 inch Bore 62mm Outside Dia
SSUC206-18 Imperial Stainless Steel Bearing Insert with 1-1/8 inch Bore 62mm Outside Dia
Regular price
Rs. 1,872.91
Regular price
Sale price
Rs. 1,872.91
Taxes included.
Low stock
Price Break
10+
Rs. 1,666.89
19+
Rs. 1,573.24
29+
Rs. 1,554.52
39+
Rs. 1,535.79
49+
Rs. 1,517.06
74+
Rs. 1,498.33
99+
Rs. 1,404.68
199+
Rs. 1,385.95
249+
Rs. 1,367.22
499+
Rs. 1,348.50
999+
Rs. 1,311.04
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Style:
- SSUC
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.34 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
