SKU: SSUC.205-16

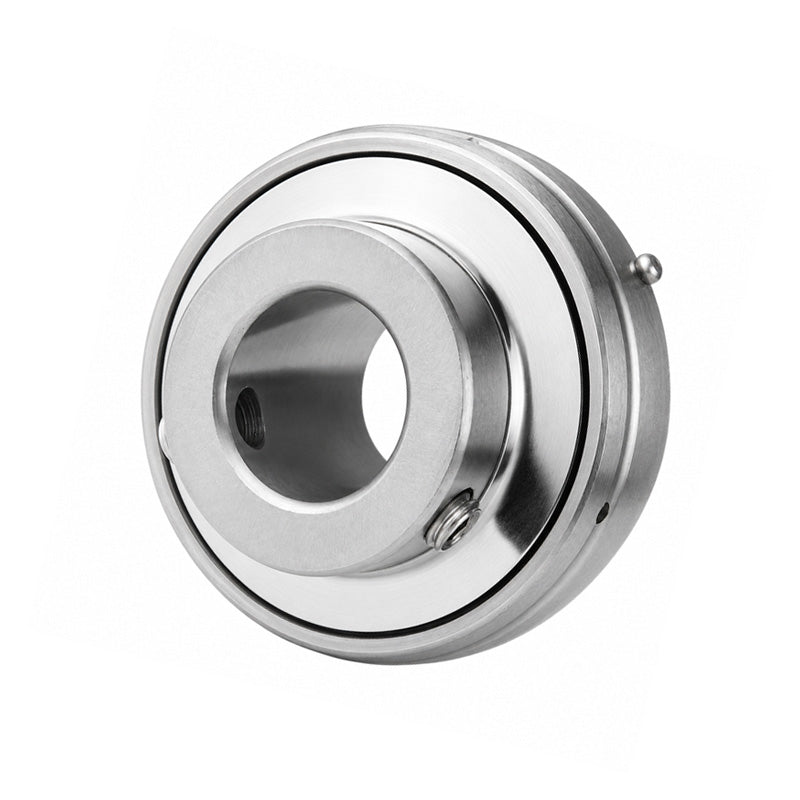

SSUC205-16 Imperial Stainless Steel Bearing Insert with 1 inch Bore 52mm Outside Dia
SSUC205-16 Imperial Stainless Steel Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
Rs. 1,143.21
Regular price
Sale price
Rs. 1,143.21
Taxes included.
In stock
Price Break
10+
Rs. 1,017.46
19+
Rs. 960.30
29+
Rs. 948.86
39+
Rs. 937.43
49+
Rs. 926.00
74+
Rs. 914.57
99+
Rs. 857.41
199+
Rs. 845.98
249+
Rs. 834.54
499+
Rs. 823.11
999+
Rs. 800.25
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- SSUC
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.2 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
