SKU: SSUC.205-14

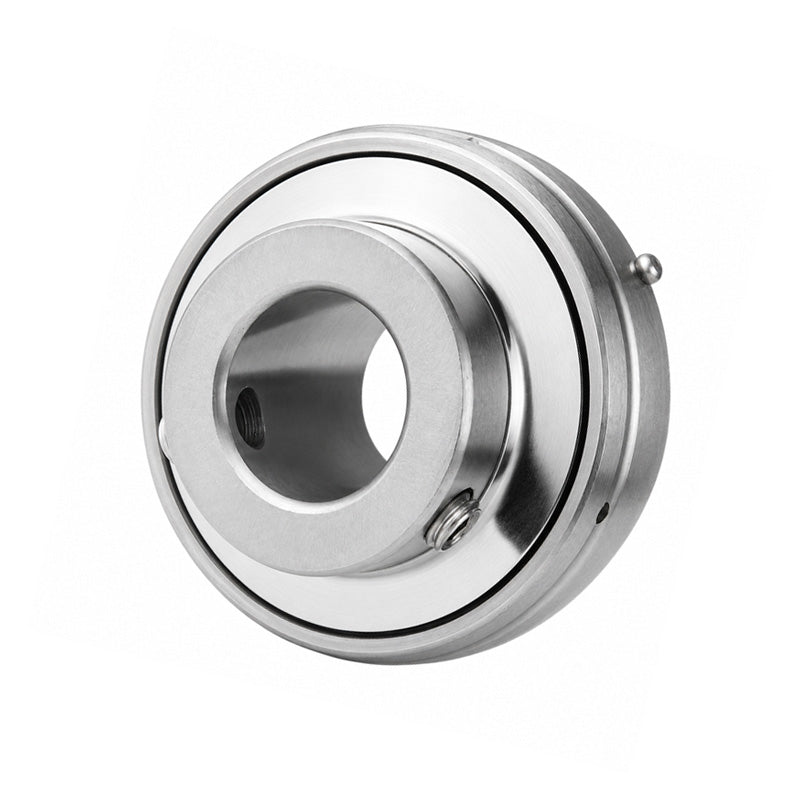

SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
SSUC205-14 Imperial Stainless Steel Bearing Insert with 7/8 inch Bore 52mm Outside Dia
Regular price
Rs. 1,734.65
Regular price
Sale price
Rs. 1,734.65
Taxes included.
In stock
Price Break
10+
Rs. 1,543.84
19+
Rs. 1,457.11
29+
Rs. 1,439.76
39+
Rs. 1,422.41
49+
Rs. 1,405.07
74+
Rs. 1,387.72
99+
Rs. 1,300.99
199+
Rs. 1,283.64
249+
Rs. 1,266.29
499+
Rs. 1,248.95
999+
Rs. 1,214.26
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- SSUC
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.23 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
