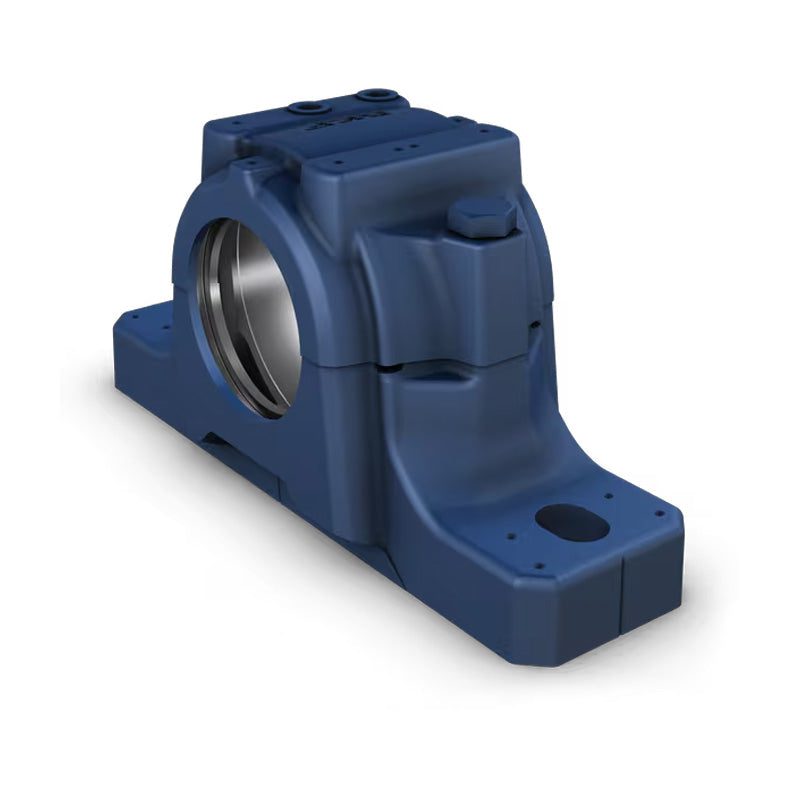

SKF SSNLD520-617 Ductile Iron Split Pillow Block Housing
SKF SSNLD520-617 Ductile Iron Split Pillow Block Housing
Regular price
Rs. 87,945.05
Regular price
Sale price
Rs. 87,945.05
Taxes included.
In stock
Price Break
10+
Rs. 78,271.09
19+
Rs. 73,873.84
29+
Rs. 72,994.39
39+
Rs. 72,114.94
49+
Rs. 71,235.49
74+
Rs. 70,356.04
99+
Rs. 65,958.79
199+
Rs. 65,079.34
249+
Rs. 64,199.89
499+
Rs. 63,320.44
999+
Rs. 61,561.54
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of ductile iron (spheroidal graphite cast iron) and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320mm
Technical
Technical
| da | 75mm |
|---|---|
| A | 6-5/16 inch = 160mm |
| A1 | 4-5/16 inch = 110mm |
| A2 | 7 inch = 178mm |
| A3 | 9-1/4 inch = 235mm |
| H | 8-9/16 inch = 218mm |
| H1 | 4.409 inch = 112mm |
| H2 | 1-9/16 inch = 40mm |
| J max | 12-13/16 inch = 326mm |
| J min | 12-3/8 inch = 314mm |
| J | 12-5/8 inch = 320mm |
| L | 15 inch = 380mm |
| N | 1-1/4 inch = 32mm |
| N1 | 1 inch = 26mm |
| G | 7/8 inch = 24mm |
| Weight | 17.6 kg |
