SKU: SSLFL.PL.202-16

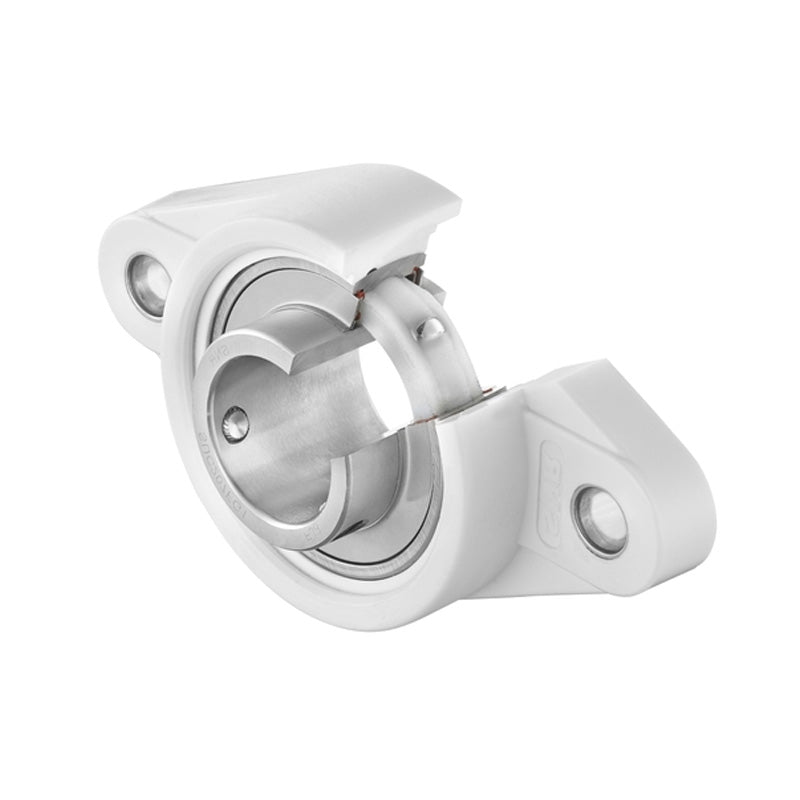

SSLFLPL202-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 16mm Bore Stainless Insert - Allow 2-3 Days
SSLFLPL202-16 Metric Thermo Plastic Two Bolt Oval Flange Housing with 16mm Bore Stainless Insert - Allow 2-3 Days
Regular price
Rs. 2,551.41
Regular price
Sale price
Rs. 2,551.41
Taxes included.
In stock
Price Break
5+
Rs. 2,525.90
10+
Rs. 2,423.84
20+
Rs. 2,372.81
50+
Rs. 2,296.27
100+
Rs. 2,245.24
500+
Rs. 2,117.67
1000+
Rs. 1,785.99
Share this product
Description
Description
SSLFLPL Thermo Plastic Two Bolt Oval Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSLFL
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 16mm |
|---|---|
| a | 81mm |
| e | 64mm |
| b | 56mm |
| g | L |
| s | 7mm |
| i | 8mm |
| Bi | 22mm |
| n | 6mm |
| Bolt | 6mm |
| Weight | 0.05kg |
| Temperature Range | -35 to 102 deg C |
