SKU: SSBPA.PL.206

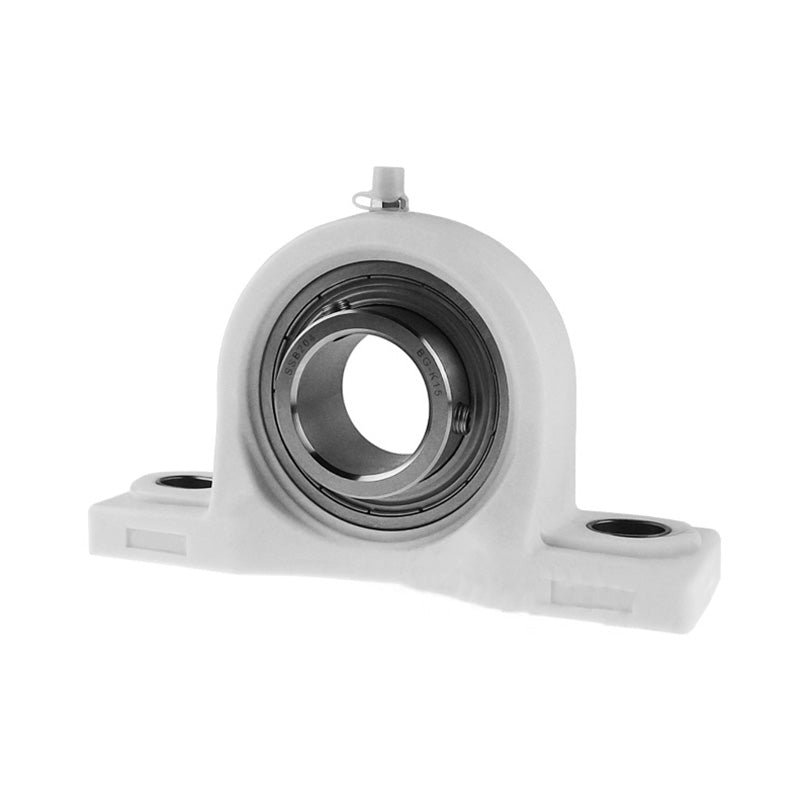

SSBPAPL206 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
SSBPAPL206 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
Regular price
Rs. 2,839.46
Regular price
Sale price
Rs. 2,839.46
Taxes included.
In stock
Price Break
10+
Rs. 2,527.12
19+
Rs. 2,385.15
29+
Rs. 2,356.75
39+
Rs. 2,328.36
49+
Rs. 2,299.96
74+
Rs. 2,271.57
99+
Rs. 2,129.60
199+
Rs. 2,101.20
249+
Rs. 2,072.81
499+
Rs. 2,044.41
999+
Rs. 1,987.62
Description
Description
SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 76mm

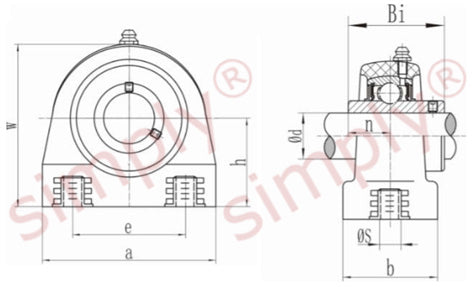

Technical
Technical
| d | 30mm |
|---|---|
| a | 102mm |
| e | 76mm |
| b | 42.5mm |
| g | L |
| s | i |
| Bi | 38mm |
| n | 16mm |
| Bolt | 10mm |
| Weight | 0.24kg |
| Temperature Range | -35 to 102 deg C |
