SKU: SSBPA.PL.205

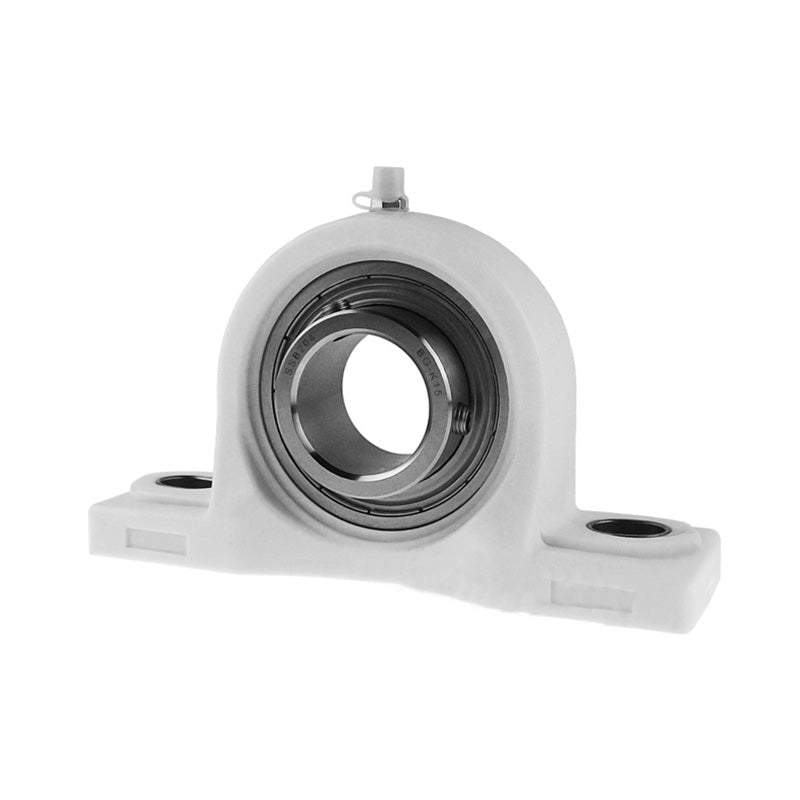

SSBPAPL205 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSBPAPL205 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
Rs. 2,076.46
Regular price
Sale price
Rs. 2,076.46
Taxes included.
In stock
Price Break
10+
Rs. 1,848.05
19+
Rs. 1,744.23
29+
Rs. 1,723.46
39+
Rs. 1,702.70
49+
Rs. 1,681.93
74+
Rs. 1,661.17
99+
Rs. 1,557.35
199+
Rs. 1,536.58
249+
Rs. 1,515.82
499+
Rs. 1,495.05
999+
Rs. 1,453.52
Description
Description
SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 51mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 76.5mm |
| e | 51mm |
| b | 39.5mm |
| g | L |
| s | i |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.15kg |
| Temperature Range | -35 to 102 deg C |
