SKU: SSBPA.PL.204

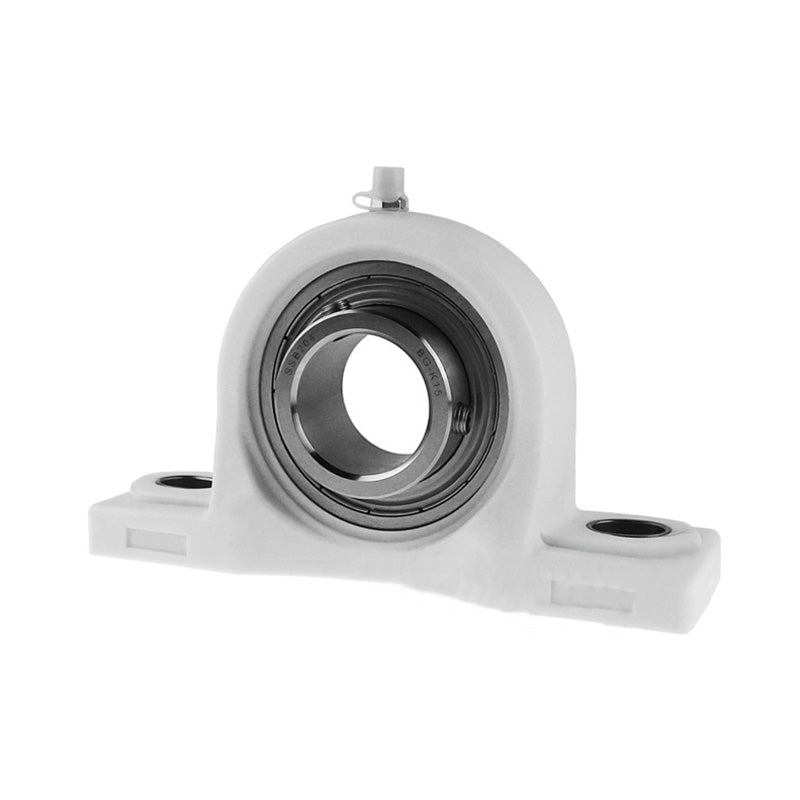

SSBPAPL204 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
SSBPAPL204 Metric Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with 20mm Bore Stainless Insert
Regular price
Rs. 1,959.97
Regular price
Sale price
Rs. 1,959.97
Taxes included.
In stock
Price Break
10+
Rs. 1,744.37
19+
Rs. 1,646.37
29+
Rs. 1,626.78
39+
Rs. 1,607.18
49+
Rs. 1,587.58
74+
Rs. 1,567.98
99+
Rs. 1,469.98
199+
Rs. 1,450.38
249+
Rs. 1,430.78
499+
Rs. 1,411.18
999+
Rs. 1,371.98
Description
Description
SSBPAPL Thermo Plastic Threaded Base Small Footprint Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBPA
- Bolt Hole Centres:
- 51mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 74mm |
| e | 51mm |
| b | 35mm |
| g | L |
| s | i |
| Bi | 31mm |
| n | 13mm |
| Bolt | 8mm |
| Weight | 0.13kg |
| Temperature Range | -35 to 102 deg C |
