SKU: SSBP.PL.207
SSBPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
SSBPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
Regular price
Rs. 5,303.63
ex VAT
Regular price
Sale price
Rs. 5,303.63
ex VAT
In stock
Price Break
10+
Rs. 4,720.23
19+
Rs. 4,455.05
29+
Rs. 4,402.01
39+
Rs. 4,348.98
49+
Rs. 4,295.94
74+
Rs. 4,242.90
99+
Rs. 3,977.72
199+
Rs. 3,924.69
249+
Rs. 3,871.65
499+
Rs. 3,818.61
999+
Rs. 3,712.54
Couldn't load pickup availability
Description
Description

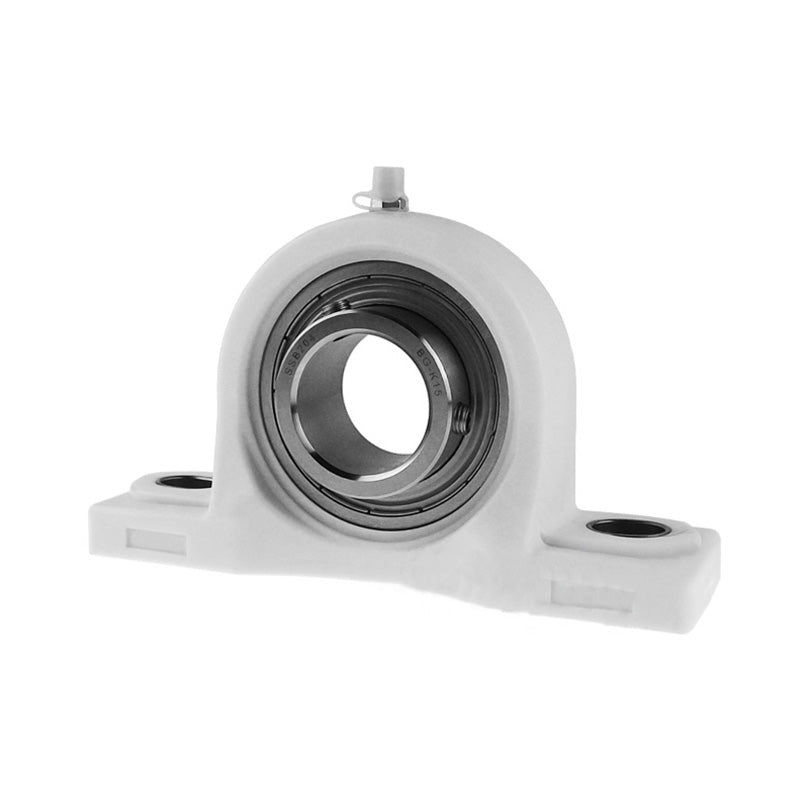

SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 48mm |
| a | 168mm |
| e | 127mm |
| b | 48mm |
| g | 18mm |
| s1 | 14mm |
| s2 | 18mm |
| w | 94.5mm |
| Bi | 43mm |
| n | 17.5mm |
| Bolt | 12mm |
| Weight | 0.25kg |
| Temperature Range | -35 to 102 deg C |
