SKU: SSBP.PL.205

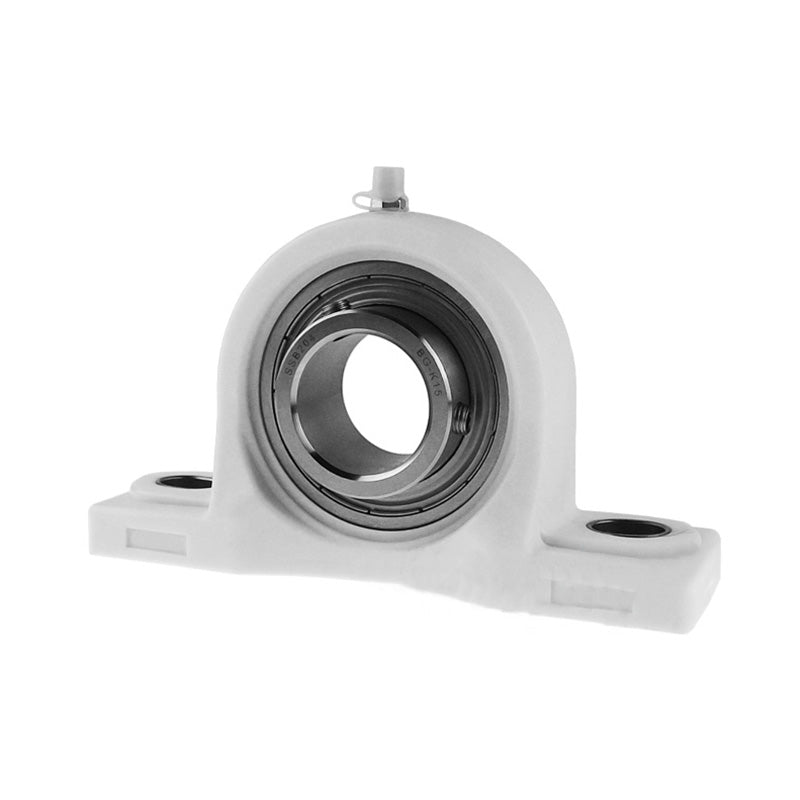

SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
SSBPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
Regular price
Rs. 4,106.84
Regular price
Sale price
Rs. 4,106.84
Taxes included.
In stock
Price Break
10+
Rs. 3,655.09
19+
Rs. 3,449.75
29+
Rs. 3,408.68
39+
Rs. 3,367.61
49+
Rs. 3,326.54
74+
Rs. 3,285.47
99+
Rs. 3,080.13
199+
Rs. 3,039.06
249+
Rs. 2,997.99
499+
Rs. 2,956.92
999+
Rs. 2,874.79
Description
Description
SSBPPL Thermo Plastic Two Bolt Pillow / Plummer Block Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| h | 36mm |
| a | 140.5mm |
| e | 105mm |
| b | 38mm |
| g | 14.5mm |
| s1 | 11mm |
| s2 | 14mm |
| w | 71.5mm |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.14kg |
| Temperature Range | -35 to 102 deg C |
