SKU: SSBFL.PL.206

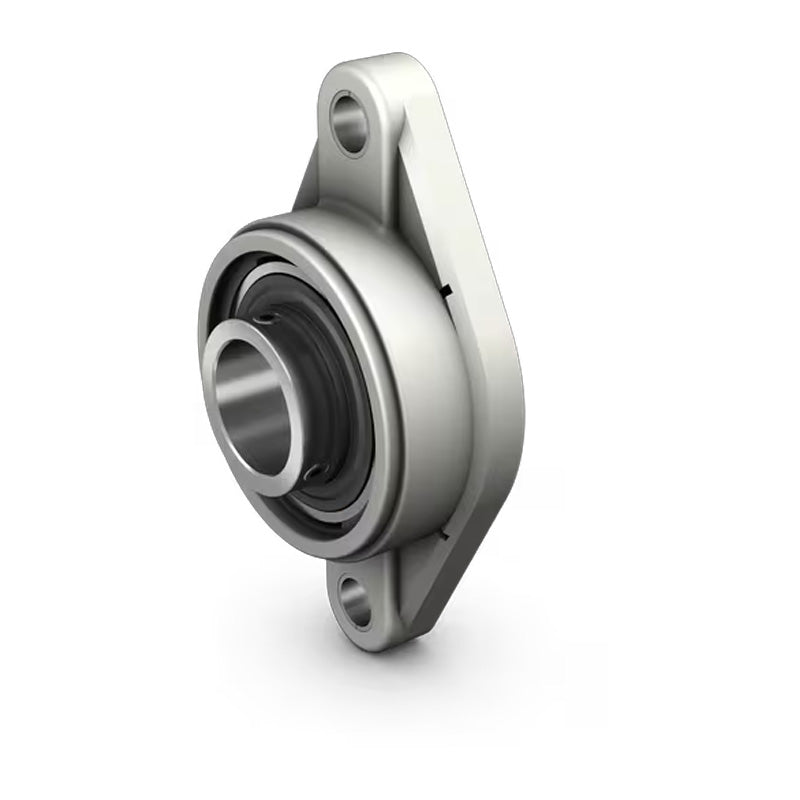

SSBFLPL206 Metric Thermo Plastic Two Bolt Oval Flange Housing with 30mm Bore Stainless Insert
SSBFLPL206 Metric Thermo Plastic Two Bolt Oval Flange Housing with 30mm Bore Stainless Insert
Regular price
Rs. 2,806.17
Regular price
Sale price
Rs. 2,806.17
Taxes included.
In stock
Price Break
10+
Rs. 2,497.49
19+
Rs. 2,357.18
29+
Rs. 2,329.12
39+
Rs. 2,301.06
49+
Rs. 2,273.00
74+
Rs. 2,244.94
99+
Rs. 2,104.63
199+
Rs. 2,076.57
249+
Rs. 2,048.50
499+
Rs. 2,020.44
999+
Rs. 1,964.32
Description
Description
SSBFLPL Thermo Plastic Two Bolt Oval Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SSBFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 148mm |
| e | 117mm |
| b | 80mm |
| g | 14mm |
| L | 30.5mm |
| s | 11mm |
| i | 19mm |
| Bi | 30mm |
| n | 16mm |
| Bolt | 10mm |
| Weight | 0.13kg |
| Temperature Range | -35 to 102 deg C |
