SKU: SS.SRP.2.5X14MM

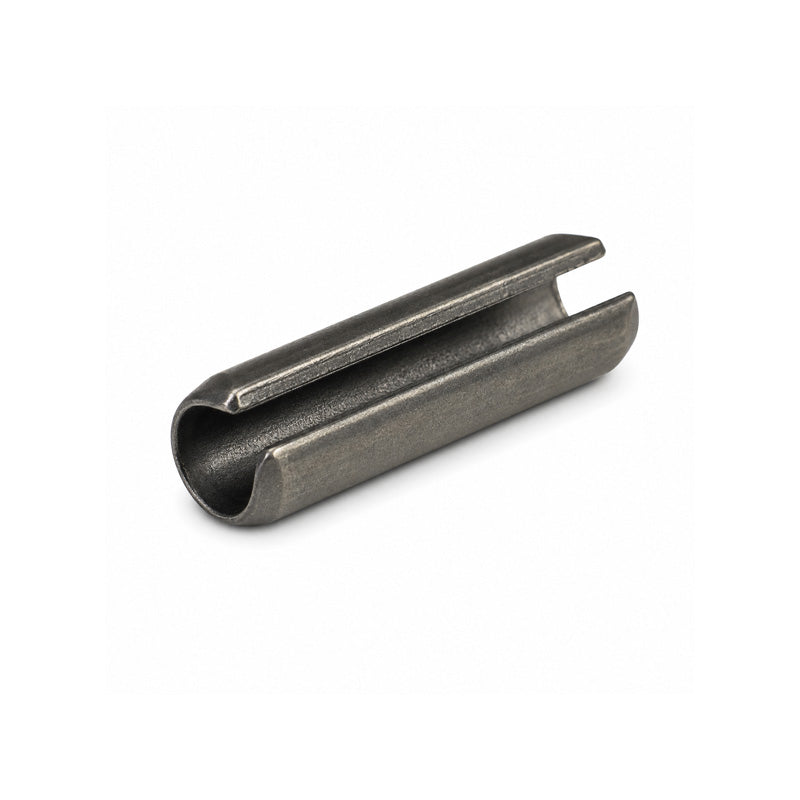

Metric Slotted Stainless Steel Spring Roll Pin 2.5x14mm - Allow 2-3 Days
Metric Slotted Stainless Steel Spring Roll Pin 2.5x14mm - Allow 2-3 Days
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
In stock
Price Break
10+
Rs. 59.85
20+
Rs. 45.70
50+
Rs. 32.65
100+
Rs. 27.21
500+
Rs. 21.76
1000+
Rs. 16.32
Description
Description
Slotted Stainless Steel Roll Pins: These roll pins are manufactured from stainless steel (A2 304) which provides corrosion resistance. These pins are slotted which expands and creates tension against the wall of an unthreaded hole. Commonly, roll pins are used to keep components in place where precise alignment is not necessary.
Benefits: Cost-effective, quick installation, corrosion and wear resistant
- Brand / Quality:
- Simply Slotted Roll Pins - High Quality
- Outside Diameter:
- 2.5mm
- Length:
- 14mm
- Material:
- Stainless Steel
- Grade:
- A2 304
Technical
Technical

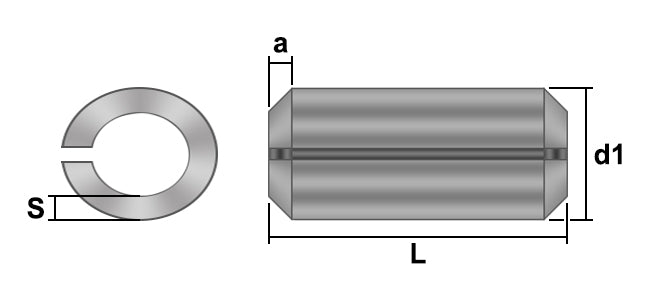

| Outside Diameter d1 | 2.5mm |
|---|---|
| Length L | 14mm |
| Length Tolerance | +/- 0.50mm |
| Wall Thickness s | 0.5mm |
| Chamfer Angle a | 30 deg |
| Material | Stainless Steel |
| Material Grade | A2 304 |
| Weight per pin | 0.0005kg |
