SKU: SS.SB.204

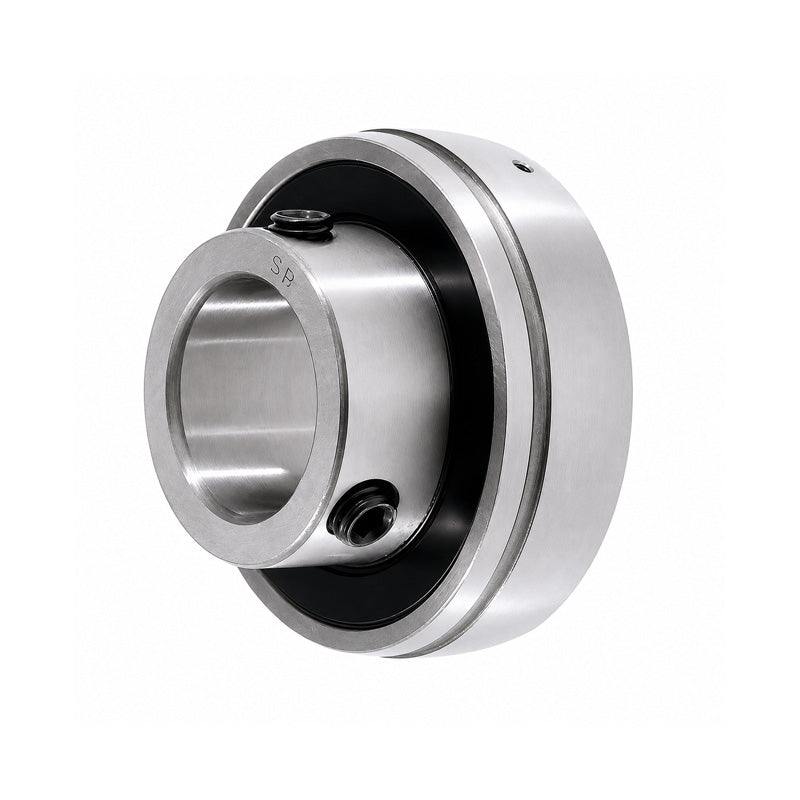

SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
SSSB204 Stainless Steel Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
Rs. 1,096.63
ex VAT
Regular price
Sale price
Rs. 1,096.63
ex VAT
In stock
Price Break
10+
Rs. 976.00
19+
Rs. 921.17
29+
Rs. 910.20
39+
Rs. 899.24
49+
Rs. 888.27
74+
Rs. 877.30
99+
Rs. 822.47
199+
Rs. 811.51
249+
Rs. 800.54
499+
Rs. 789.57
999+
Rs. 767.64
Couldn't load pickup availability
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Type:
- Spherical Outer
Technical
Technical
| Shaft Dia | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| ds | M6X1.0 |
| Dynamic Load | 1000 kgf |
| Static Load | 630 kgf |
| Weight | 0.15kg |
