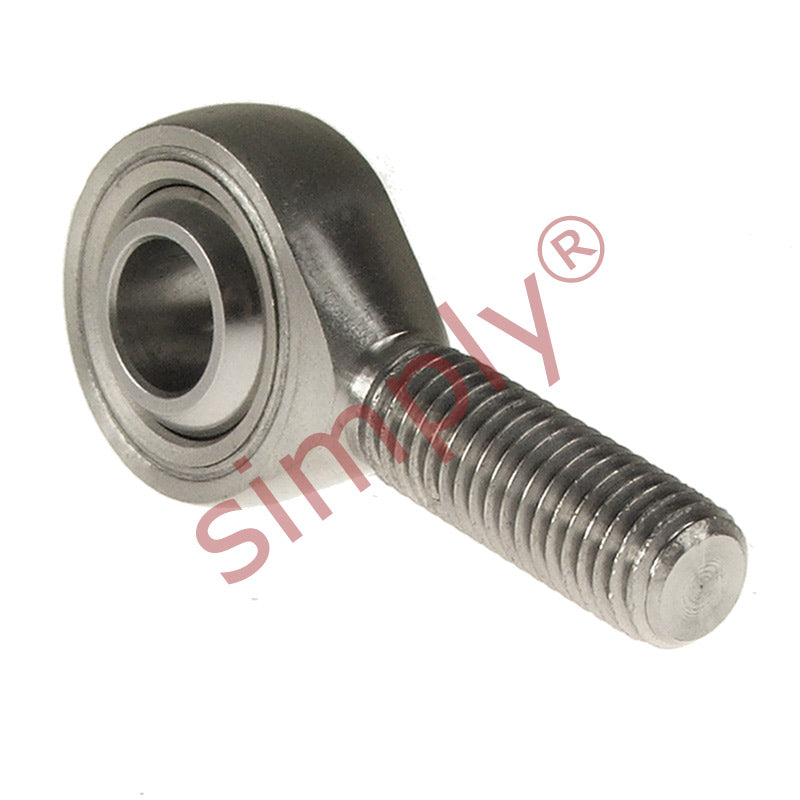

Budget SSPOS20L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Budget SSPOS20L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Regular price
Rs. 8,368.59
Regular price
Sale price
Rs. 8,368.59
Taxes included.
In stock
Price Break
10+
Rs. 7,448.05
19+
Rs. 7,029.62
29+
Rs. 6,945.93
39+
Rs. 6,862.24
49+
Rs. 6,778.56
74+
Rs. 6,694.87
99+
Rs. 6,276.44
199+
Rs. 6,192.76
249+
Rs. 6,109.07
499+
Rs. 6,025.38
999+
Rs. 5,858.01
Description
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- PTFE Lined

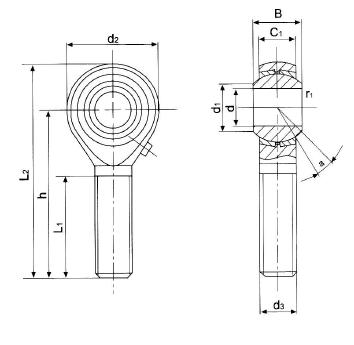

Technical
Technical
| d | 20mm |
|---|---|
| B | 25mm |
| r1 | 0.6mm |
| C1 | 18mm |
| d1 max | 24.3mm |
| d2 | 46mm |
| d3 | M20x1.5 |
| h | 78mm |
| l1 | 47mm |
| l2 | 101mm |
| Ball diameter | 1-3/8 inch |
| Dynamic load Cr | 31.4 kN |
| Static load Cor | 36.2 kN |
| Max angle α | 14 |
| Weight | 0.34 kg |
