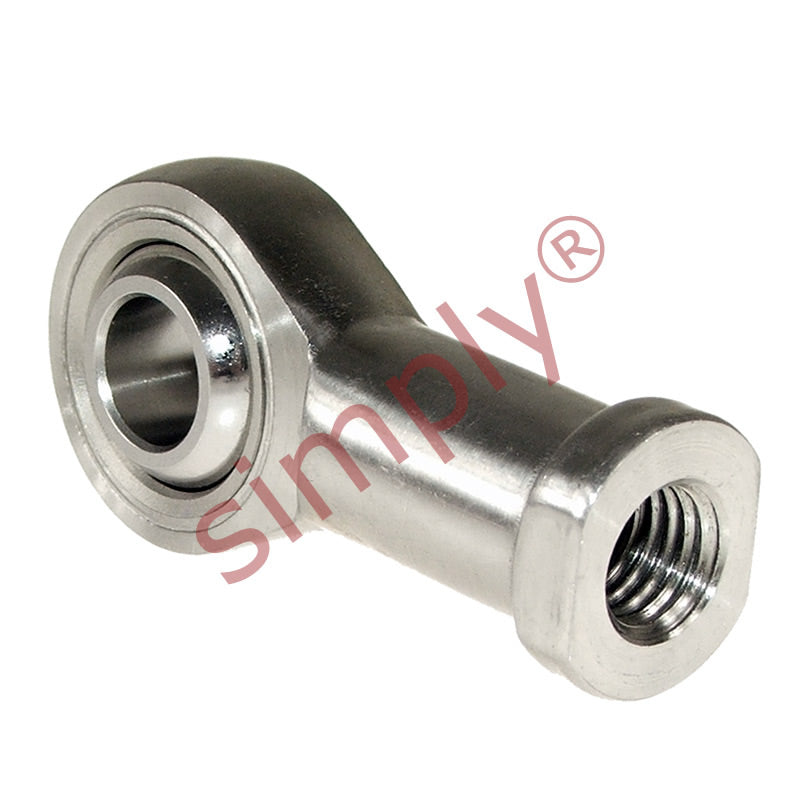

Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Regular price
Rs. 5,835.10
Regular price
Sale price
Rs. 5,835.10
Taxes included.
In stock
Price Break
10+
Rs. 5,193.24
19+
Rs. 4,901.48
29+
Rs. 4,843.13
39+
Rs. 4,784.78
49+
Rs. 4,726.43
74+
Rs. 4,668.08
99+
Rs. 4,376.33
199+
Rs. 4,317.97
249+
Rs. 4,259.62
499+
Rs. 4,201.27
999+
Rs. 4,084.57
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Material:
- PTFE Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h1 | 71mm |
| L3 | 36mm |
| L4 | 92mm |
| L5 | 10mm |
| d4 | 25mm |
| d5 | 31mm |
| S | 27mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2mm |
| Static load Cor | 30.8mm |
| Max angle α | 15 |
| Weight | 0.295 kg |
