SKU: SS.D1500-0190

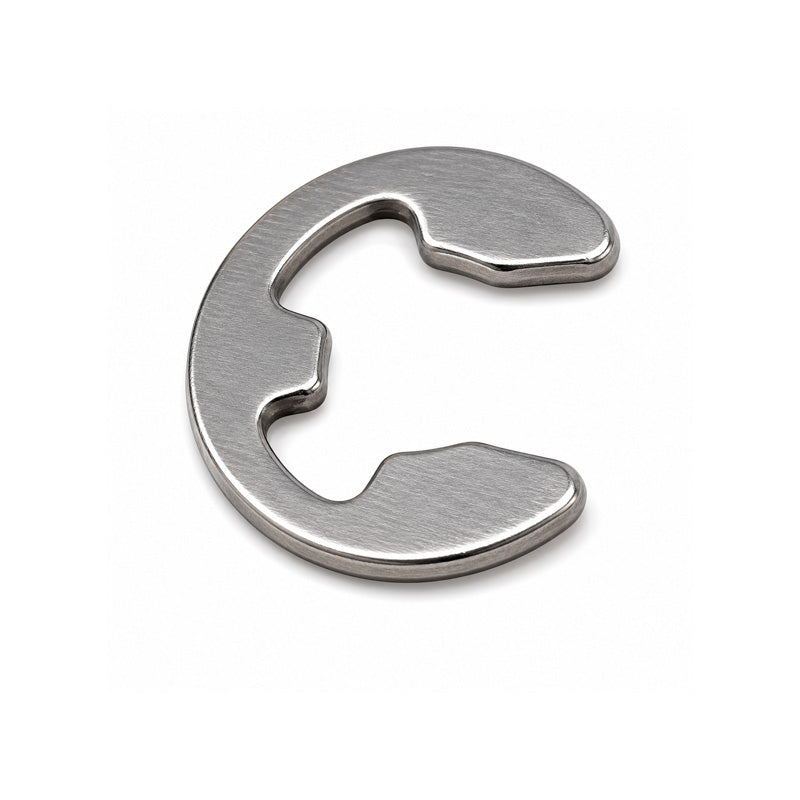

Stainless Steel E-Clip for 19mm Groove Diameter
Stainless Steel E-Clip for 19mm Groove Diameter
Regular price
Rs. 121.62
Regular price
Sale price
Rs. 121.62
Taxes included.
Equivalent to: SS.D1500-0190
In stock
Price Break
5+
Rs. 85.13
10+
Rs. 72.97
20+
Rs. 66.89
50+
Rs. 60.81
100+
Rs. 48.65
500+
Rs. 42.57
1000+
Rs. 36.49
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
Equivalent: SS.D1500-0190
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 25mm
- Thickness:
- 1.75mm
- Groove Diameter:
- 19mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 25mm |
| Shaft Range | 20mm to 31mm |
| Thickness (s) | 1.75mm |
| Thickness Tolerance | ±0.03mm |
| Max Outisde Diameter (d4) | 36.5mm |
| Shoulder Length (n) | 3.5mm |
| a | 15.92mm |
| a Tolerance | ±0.084mm |
| Weight | 6.42kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 8000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 19mm |
| Groove Diameter Tolerance | +0mm / -0.13mm |
| Groove Width (m) | 1.8mm |
| Groove Depth (g) | 2.5mm |
