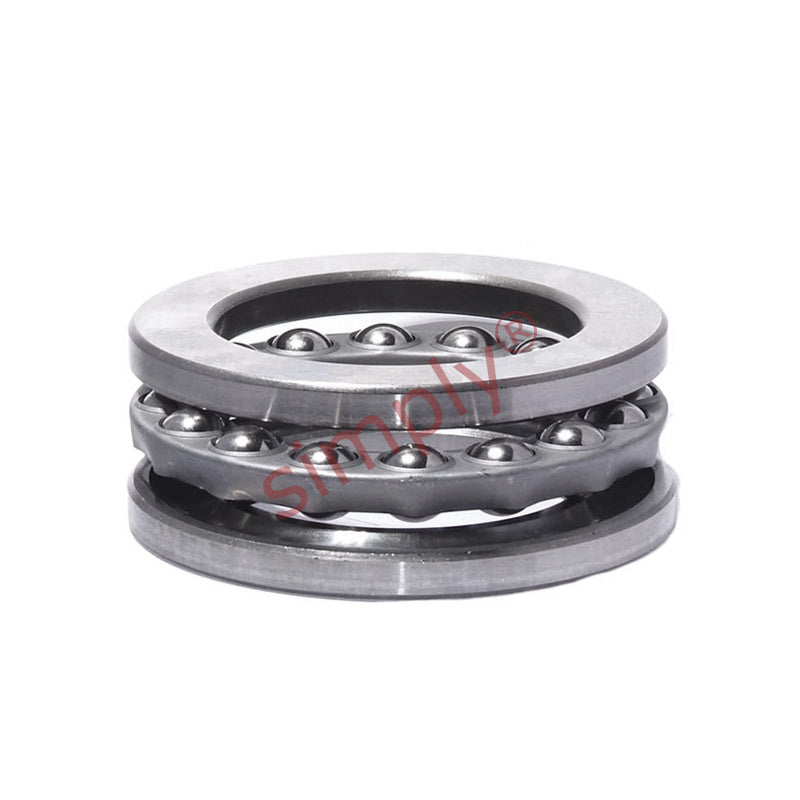

SS51212 Budget Stainless Single Thrust Ball Bearing 60x95x26mm
SS51212 Budget Stainless Single Thrust Ball Bearing 60x95x26mm
Regular price
Rs. 7,149.85
Regular price
Sale price
Rs. 7,149.85
Taxes included.
Equivalent to: W51212
In stock
Price Break
10+
Rs. 6,363.37
19+
Rs. 6,005.87
29+
Rs. 5,934.38
39+
Rs. 5,862.88
49+
Rs. 5,791.38
74+
Rs. 5,719.88
99+
Rs. 5,362.39
199+
Rs. 5,290.89
249+
Rs. 5,219.39
499+
Rs. 5,147.89
999+
Rs. 5,004.90
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Equivalent: W51212
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 26mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| H | 26mm |
| Dynamic load C | 62.4 kN |
| Static load Co | 150 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting speed | 3800 rpm |
| Weight | 0.65 kg |
| d1 | 95mm |
| D1 | 62mm |
| r1r2 min | 1mm |
| da min | 81mm |
| Da max | 74mm |
| ra max | 1mm |
