SKU: SS-51210-EU
SS51210 Budget Stainless Single Thrust Ball Bearing 50x78x22mm
SS51210 Budget Stainless Single Thrust Ball Bearing 50x78x22mm
Regular price
Rs. 4,753.34
Regular price
Sale price
Rs. 4,753.34
Taxes included.
Equivalent to: W51210
In stock
Price Break
10+
Rs. 4,230.47
19+
Rs. 3,992.81
29+
Rs. 3,945.27
39+
Rs. 3,897.74
49+
Rs. 3,850.21
74+
Rs. 3,802.67
99+
Rs. 3,565.01
199+
Rs. 3,517.47
249+
Rs. 3,469.94
499+
Rs. 3,422.40
999+
Rs. 3,327.34
Description
Description

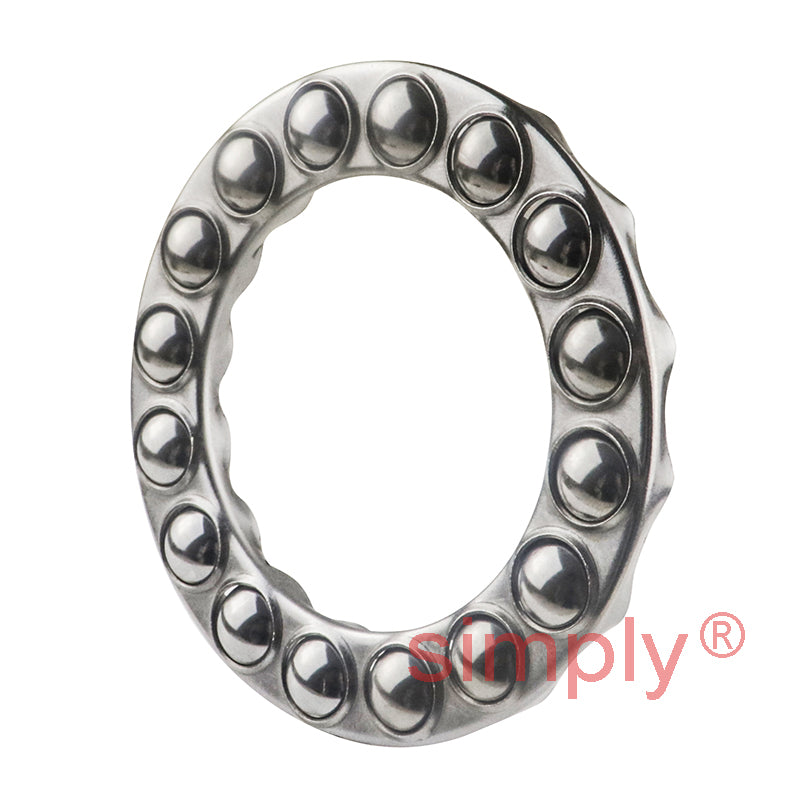

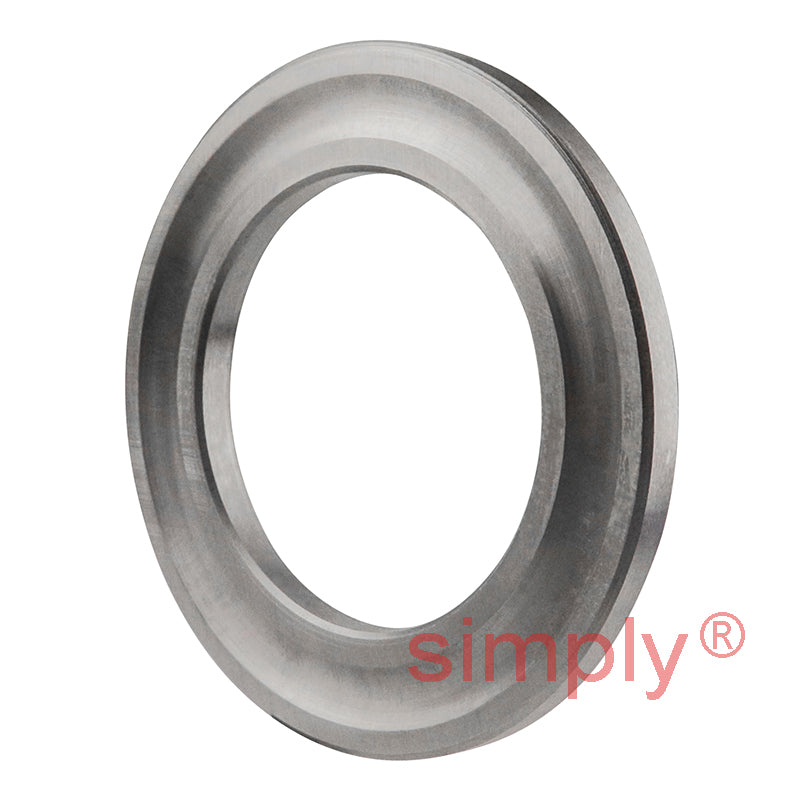

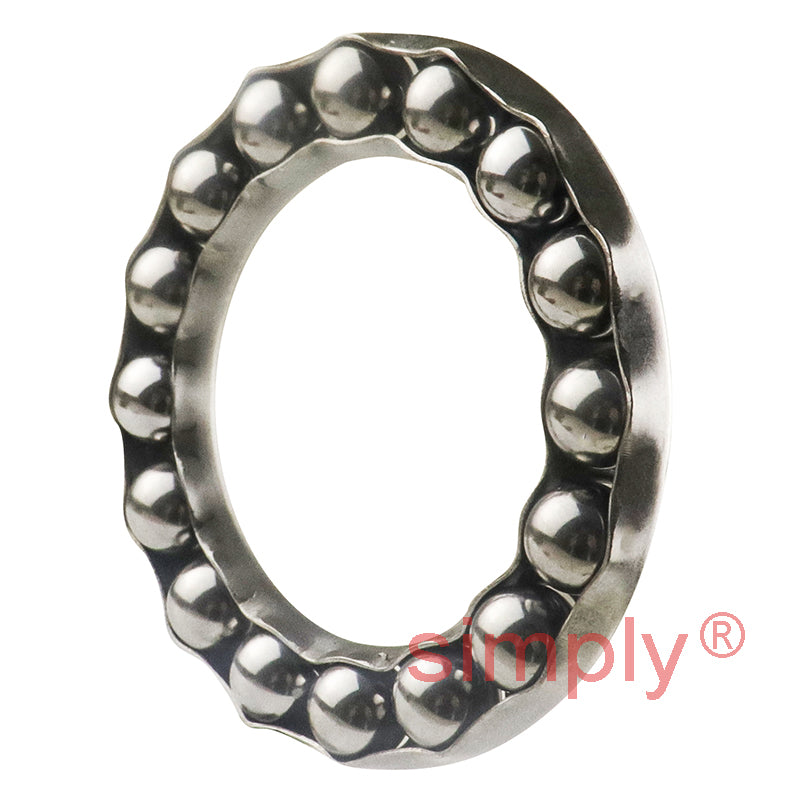

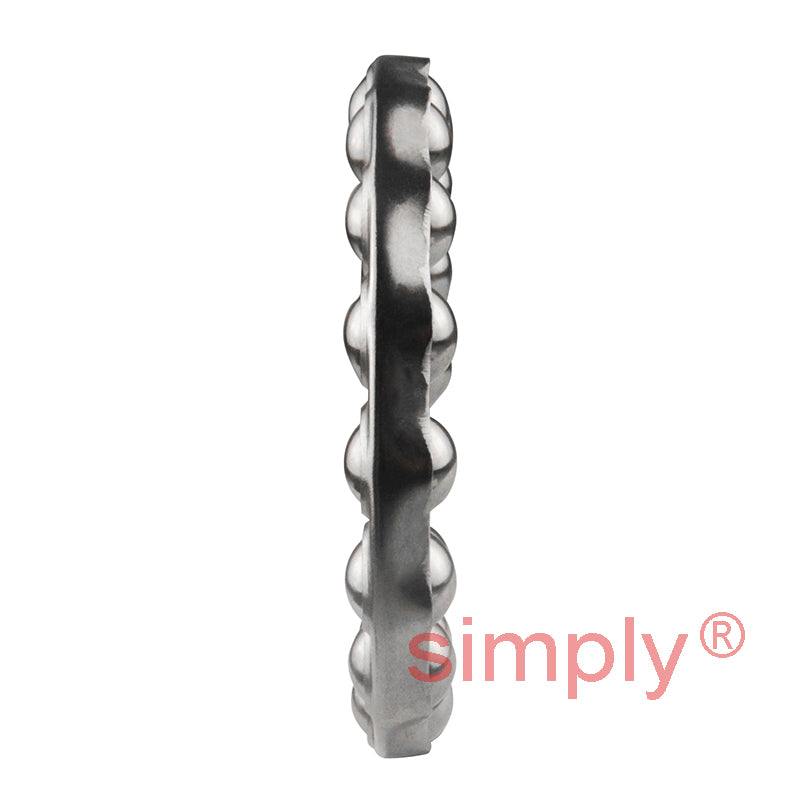

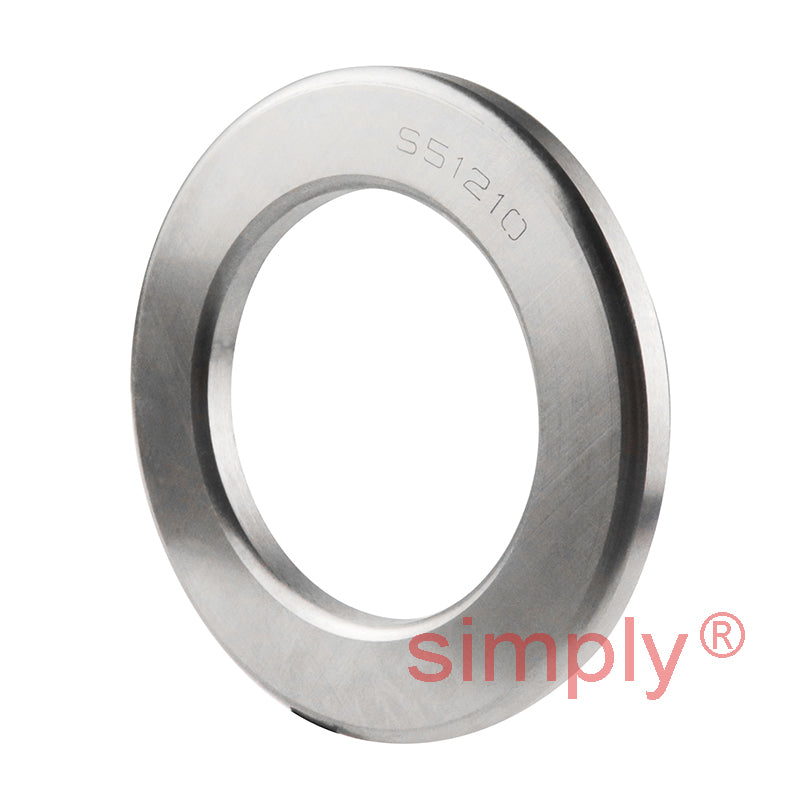

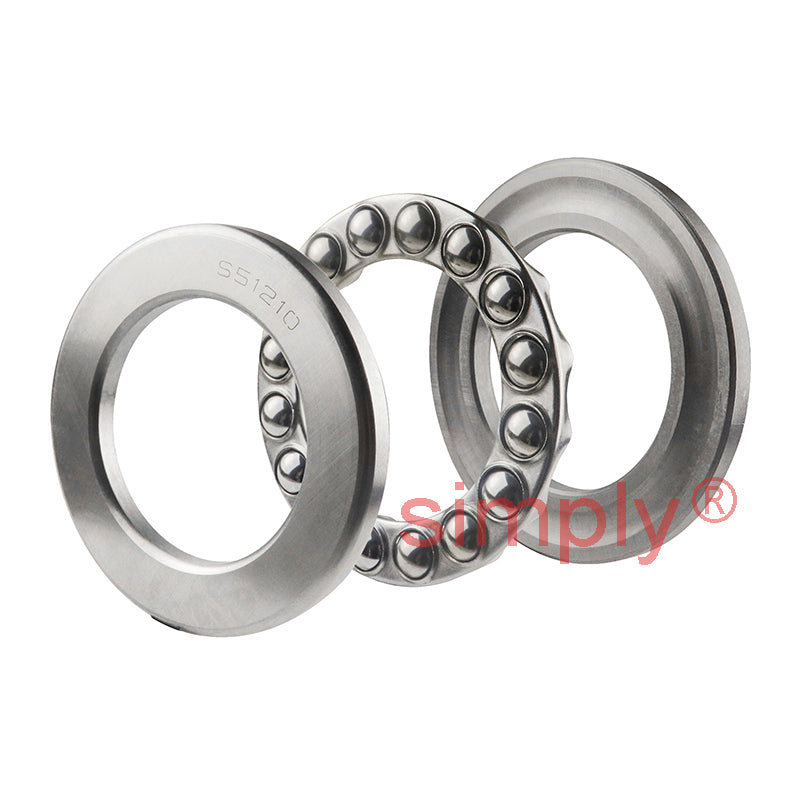

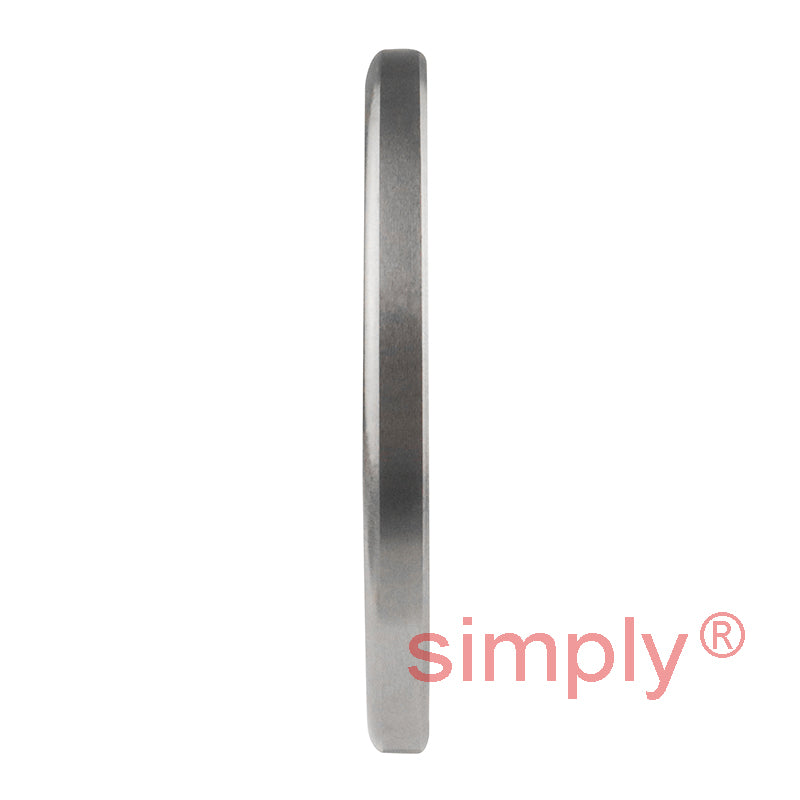

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Equivalent: W51210
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 78mm
- Width:
- 22mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 78mm |
| H | 22mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 116 kN |
| Fatigue load limit Pu | 4.3 kN |
| Minimum load factor A | 0.069 |
| Reference speed | 3400 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.37 kg |
| d1 | 78mm |
| D1 | 52mm |
| r1r2 min | 1mm |
| da min | 67mm |
| Da max | 61mm |
| ra max | 1mm |
