SKU: SS-51207-EU
SS51207 Budget Stainless Single Thrust Ball Bearing 35x62x18mm
SS51207 Budget Stainless Single Thrust Ball Bearing 35x62x18mm
Regular price
Rs. 2,329.94
Regular price
Sale price
Rs. 2,329.94
Taxes included.
Equivalent to: W51207
In stock
Price Break
10+
Rs. 2,073.65
19+
Rs. 1,957.15
29+
Rs. 1,933.85
39+
Rs. 1,910.55
49+
Rs. 1,887.25
74+
Rs. 1,863.95
99+
Rs. 1,747.46
199+
Rs. 1,724.16
249+
Rs. 1,700.86
499+
Rs. 1,677.56
999+
Rs. 1,630.96
Description
Description

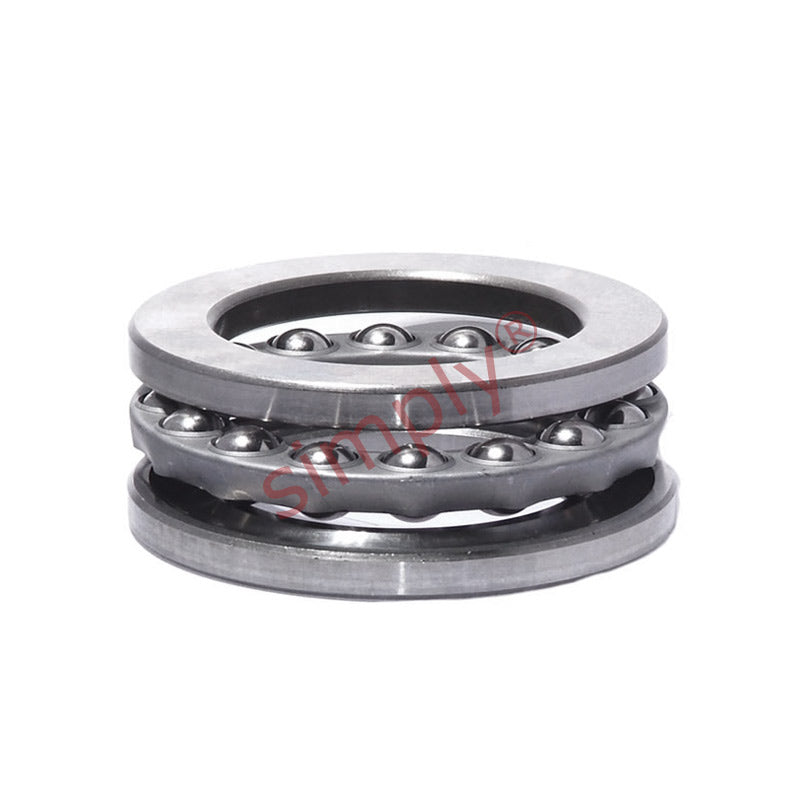

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Equivalent: W51207
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| H | 18mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.7 kN |
| Minimum load factor A | 0.028 |
| Reference speed | 4000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.22 kg |
| d1 | 62mm |
| D1 | 37mm |
| r1r2 min | 1mm |
| da min | 51mm |
| Da max | 46mm |
| ra max | 1mm |
