SKU: SS-51107-EU

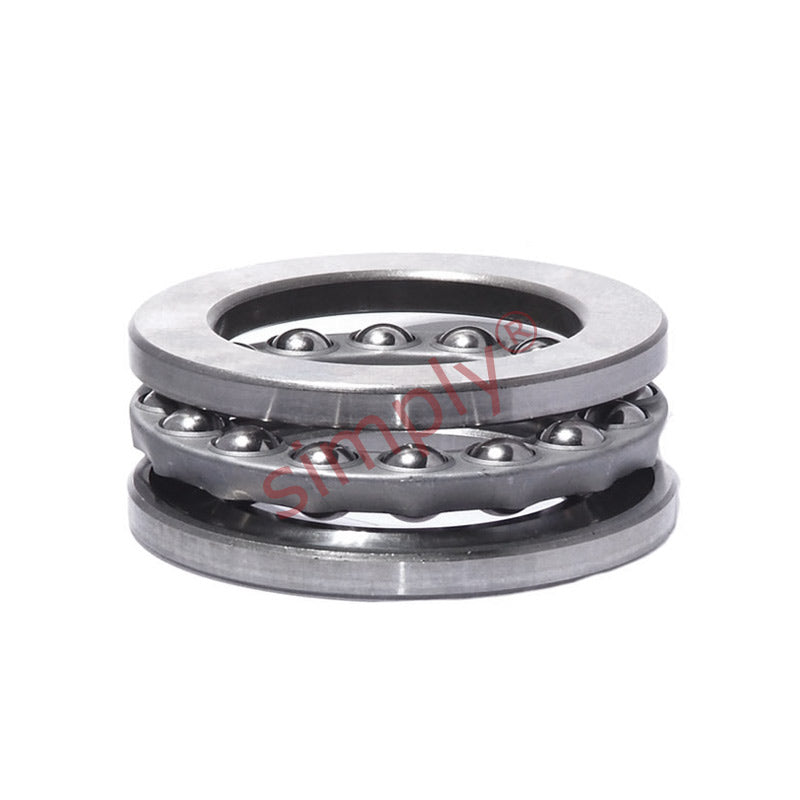

SS51107 Budget Stainless Single Thrust Ball Bearing 35x52x12mm
SS51107 Budget Stainless Single Thrust Ball Bearing 35x52x12mm
Regular price
Rs. 2,131.51
Regular price
Sale price
Rs. 2,131.51
Taxes included.
Equivalent to: W51107
In stock
Price Break
10+
Rs. 1,897.04
19+
Rs. 1,790.47
29+
Rs. 1,769.15
39+
Rs. 1,747.84
49+
Rs. 1,726.52
74+
Rs. 1,705.21
99+
Rs. 1,598.63
199+
Rs. 1,577.32
249+
Rs. 1,556.00
499+
Rs. 1,534.69
999+
Rs. 1,492.06
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Equivalent: W51107
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 52mm |
| H | 12mm |
| Dynamic load C | 19.9 kN |
| Static load Co | 51 kN |
| Fatigue load limit Pu | 1.86 kN |
| Minimum load factor A | 0.013 |
| Reference speed | 5600 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.08 kg |
| d1 | 52mm |
| D1 | 37mm |
| r1r2 min | 0.6mm |
| da min | 45mm |
| Da max | 42mm |
| ra max | 0.6mm |
