SKU: SRB25/2_15/30-TRAN

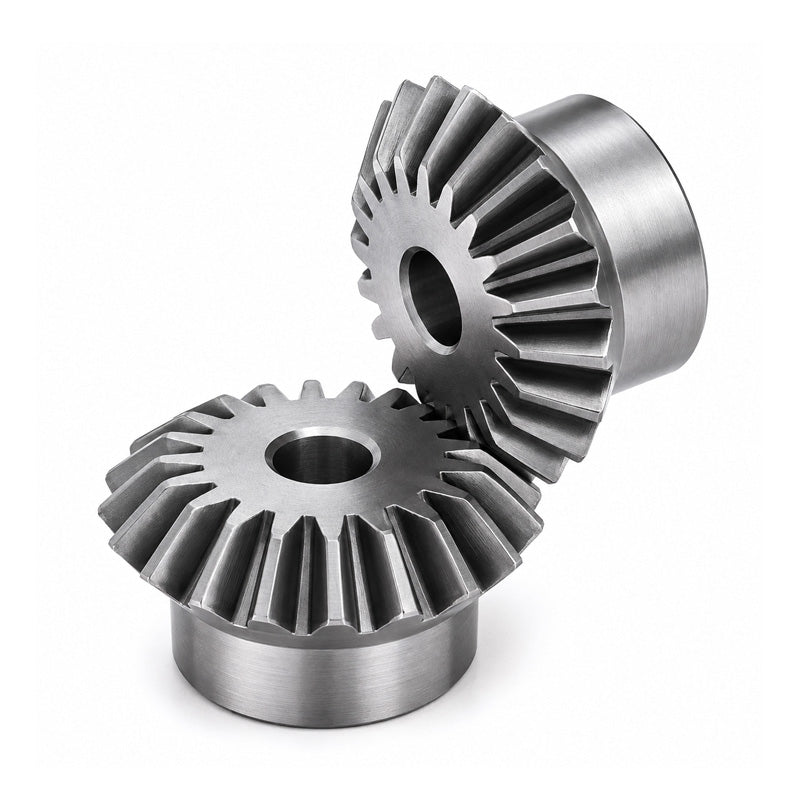

SRB25/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.5 MOD 20deg Pressure Angle
SRB25/2 15/30 Tooth Metric En8 Steel Bevel Gear Set 2:1 Ratio 2.5 MOD 20deg Pressure Angle
Regular price
Rs. 11,857.45
ex VAT
Regular price
Sale price
Rs. 11,857.45
ex VAT
Equivalent to: SRB25/2
In stock
Price Break
10+
Rs. 10,553.13
19+
Rs. 9,960.26
29+
Rs. 9,841.68
39+
Rs. 9,723.11
49+
Rs. 9,604.53
74+
Rs. 9,485.96
99+
Rs. 8,893.09
199+
Rs. 8,774.51
249+
Rs. 8,655.94
499+
Rs. 8,537.36
999+
Rs. 8,300.22
Couldn't load pickup availability
Description
Description
Equivalent: SRB25/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 12mm / G2: 16mm
- Number of Teeth:
- 15/30
- Pitch Circle Diameter:
- G1: 43.5mm / G2: 76.5mm
Technical
Technical
| Gear 1 - Pitch Module | 2.5 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 37.5mm |
| Gear 1 - A+V | 55mm |
| Gear 1 - dm | 32.3mm |
| Gear 1 - Bore | 12mm |
| Gear 1 - F | 15mm |
| Gear 1 - A | 31.8mm |
| Gear 1 - de | 43.5mm |
| Gear 1 - S | 0mm |
| Gear 1 - Lm | 16.2mm |
| Gear 2 - Pitch Module | 2.5 |
| Gear 2 - No. Teeth | 30 |
| Gear 2 - dp | 75mm |
| Gear 2 - A+V | 45mm |
| Gear 2 - dm | 45.3mm |
| Gear 2 - Bore | 16mm |
| Gear 2 - F | 15mm |
| Gear 2 - A | 33.7mm |
| Gear 2 - de | 76.5mm |
| Gear 2 - S | 3.7mm |
| Gear 2 - Lm | 20mm |
