SKU: SR40-40-1CIHT-TRAN

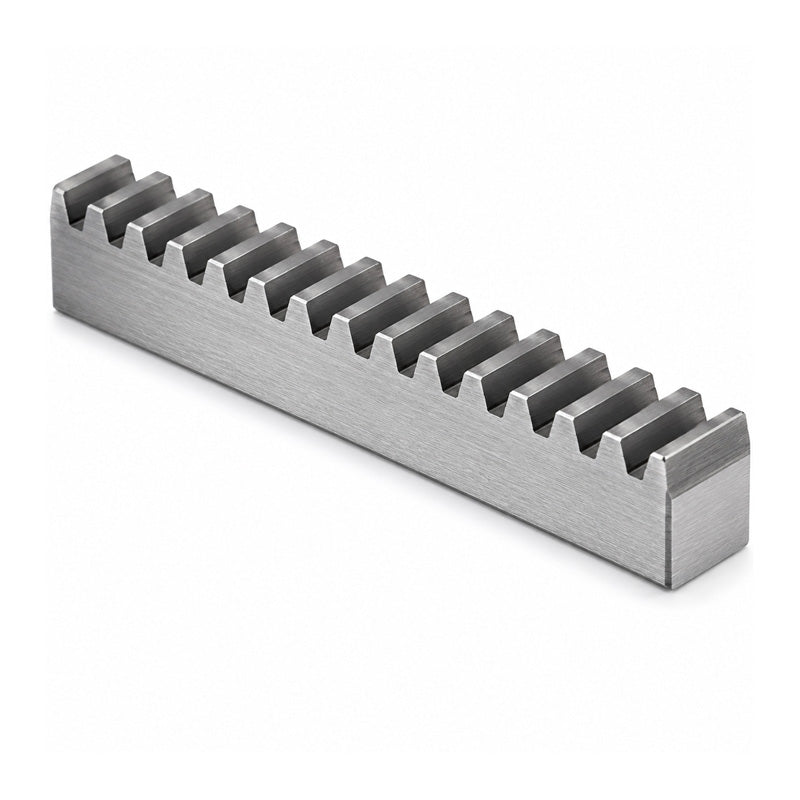

SR40/40/1CIHT Metric Continuous Mounting En8 Steel Rack with Hardened Teeth 4.0 MOD 20deg Pressure Angle 1005.31mm Length
SR40/40/1CIHT Metric Continuous Mounting En8 Steel Rack with Hardened Teeth 4.0 MOD 20deg Pressure Angle 1005.31mm Length
Regular price
Rs. 31,030.53
ex VAT
Regular price
Sale price
Rs. 31,030.53
ex VAT
Equivalent to: SR40/40/1CIHT
In stock
Price Break
10+
Rs. 27,617.17
19+
Rs. 26,065.65
29+
Rs. 25,755.34
39+
Rs. 25,445.03
49+
Rs. 25,134.73
74+
Rs. 24,824.42
99+
Rs. 23,272.90
199+
Rs. 22,962.59
249+
Rs. 22,652.29
499+
Rs. 22,341.98
999+
Rs. 21,721.37
Couldn't load pickup availability
Description
Description
Equivalent: SR40/40/1CIHT
- Brand / Quality:
- Drive-Flex - High Quality
- Width:
- 40mm
- Height:
- 40mm
- Length:
- 1005.31mm
- Number of Teeth:
- 80
Technical
Technical
| Pitch Module | 4.0 |
|---|---|
| Width (B) | 40mm |
| Height (A) | 40mm |
| Length (L) | 1005.31mm |
| Height to Pitch Line (hp) | 36mm |
| Tolerance of Cut for Continuous Mounting | -0.05/-1.32 |
| No. of Teeth | 80 |
