SKU: SONL232-532-SKF

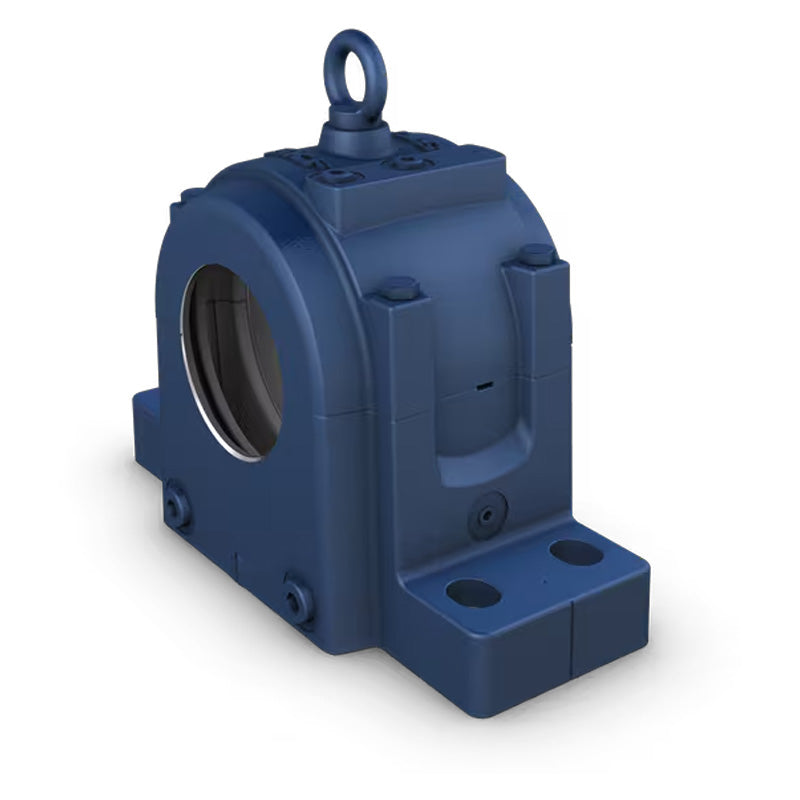

SKF SONL232-532 Cast Iron Split Pillow Block Housing
SKF SONL232-532 Cast Iron Split Pillow Block Housing
Regular price
Rs. 405,438.00
Regular price
Sale price
Rs. 405,438.00
Taxes included.
In stock
Price Break
10+
Rs. 360,839.82
19+
Rs. 340,567.92
29+
Rs. 336,513.54
39+
Rs. 332,459.16
49+
Rs. 328,404.78
74+
Rs. 324,350.40
99+
Rs. 304,078.50
199+
Rs. 300,024.12
249+
Rs. 295,969.74
499+
Rs. 291,915.36
999+
Rs. 283,806.60
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 470mm
Technical
Technical
| da | 138.112mm |
|---|---|
| Ca | 104mm |
| Da | 290mm |
| A | 278mm |
| A1 | 205mm |
| A2 | 196mm |
| AA | 297mm |
| AB | 316mm |
| d1 | 178mm |
| B1 | 118mm |
| H | 406mm |
| H0 | 477mm |
| H1 | 215mm |
| H2 | 65mm |
| J | 470mm |
| J1 | 120mm |
| L | 560mm |
| N | 42mm |
| N1 | 35mm |
| S | 158mm |
| PG | G 3/8 |
| P1 | 65mm |
| P2 | 78mm |
| RG | G 3/4 |
| R1 | 252mm |
| R2 | 26mm |
| O1 | 121mm |
| O2 | 196mm |
| J6 | 480mm |
| N4 max | 12mm |
| ba | 73mm |
| bb | 231mm |
| s2 | 42mm |
| Weight | 141 kg |
