SKU: SONL220-520-SKF

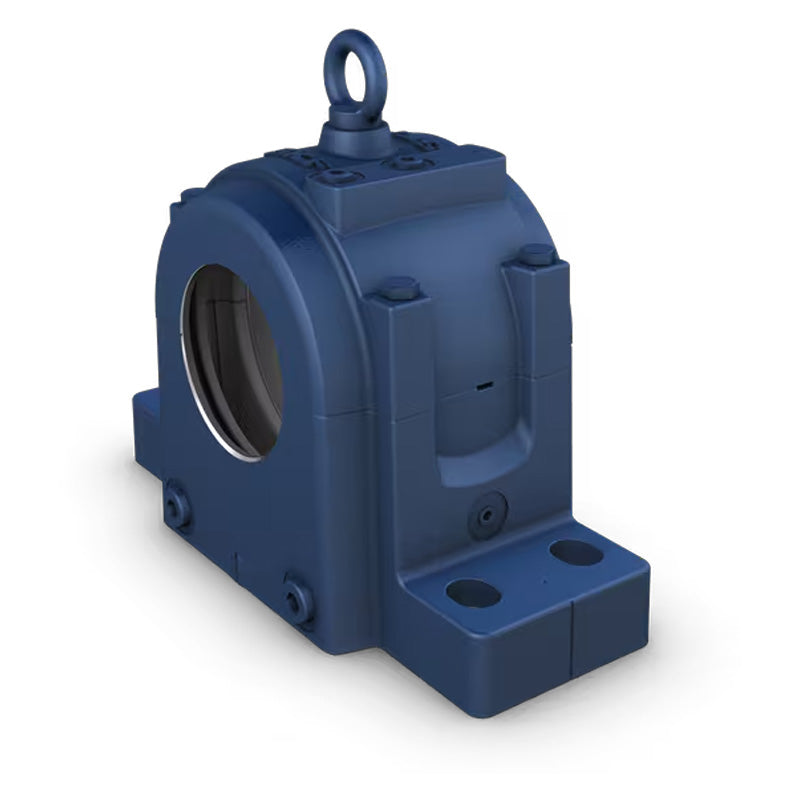

SKF SONL220-520 Cast Iron Split Pillow Block Housing
SKF SONL220-520 Cast Iron Split Pillow Block Housing
Regular price
Rs. 305,121.21
Regular price
Sale price
Rs. 305,121.21
Taxes included.
In stock
Price Break
10+
Rs. 271,557.88
19+
Rs. 256,301.82
29+
Rs. 253,250.60
39+
Rs. 250,199.39
49+
Rs. 247,148.18
74+
Rs. 244,096.97
99+
Rs. 228,840.91
199+
Rs. 225,789.70
249+
Rs. 222,738.48
499+
Rs. 219,687.27
999+
Rs. 213,584.85
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320mm

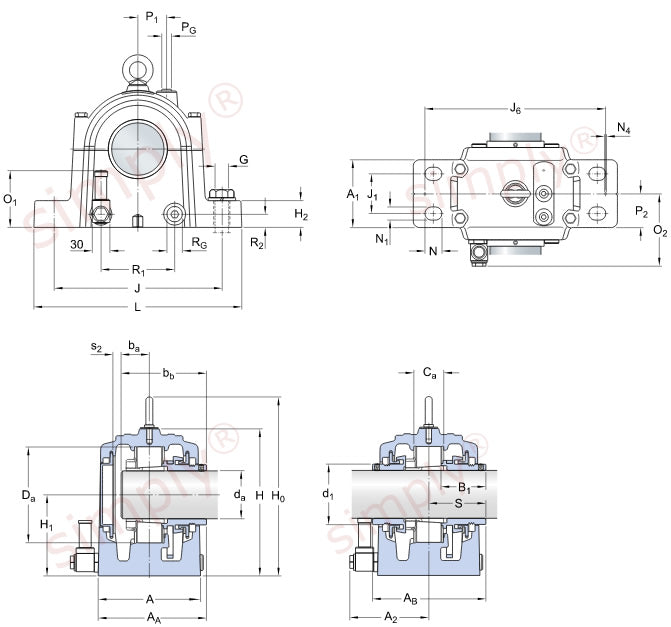

Technical
Technical
| da | 87.312mm |
|---|---|
| Ca | 60mm |
| Da | 180mm |
| A | 186mm |
| A1 | 130mm |
| A2 | 150mm |
| AA | 196mm |
| AB | 206mm |
| d1 | 112mm |
| B1 | 80mm |
| H | 270mm |
| H0 | 323mm |
| H1 | 145mm |
| H2 | 50mm |
| J | 320mm |
| J1 | 75mm |
| L | 400mm |
| N | 32mm |
| N1 | 26mm |
| S | 103mm |
| PG | G 3/8 |
| P1 | 50mm |
| P2 | 47mm |
| RG | G 3/4 |
| R1 | 144mm |
| R2 | 22mm |
| O1 | 97mm |
| O2 | 150mm |
| J6 | 350mm |
| N4 max | 8mm |
| ba | 47mm |
| bb | 150mm |
| s2 | 25mm |
| Weight | 42 kg |
