SKU: SNP50-RHP

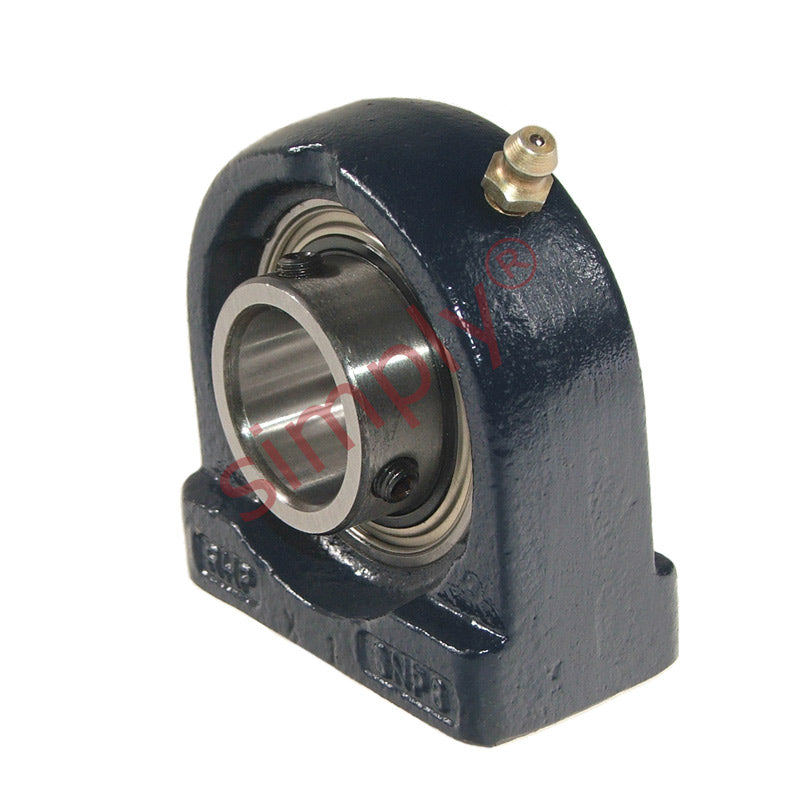

RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert
RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert
Regular price
Rs. 11,293.63
ex VAT
Regular price
Sale price
Rs. 11,293.63
ex VAT
In stock
Price Break
10+
Rs. 10,051.33
19+
Rs. 9,486.65
29+
Rs. 9,373.71
39+
Rs. 9,260.78
49+
Rs. 9,147.84
74+
Rs. 9,034.90
99+
Rs. 8,470.22
199+
Rs. 8,357.29
249+
Rs. 8,244.35
499+
Rs. 8,131.41
999+
Rs. 7,905.54
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SNP
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 135mm |
| H | 57.2mm |
| H1 | 23.5mm |
| H2 | 115mm |
| J | 101.6mm |
| Threads | M16x2.0 |
| A | 54mm |
| A1 | 34mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
