SKU: SNP45A-RHP

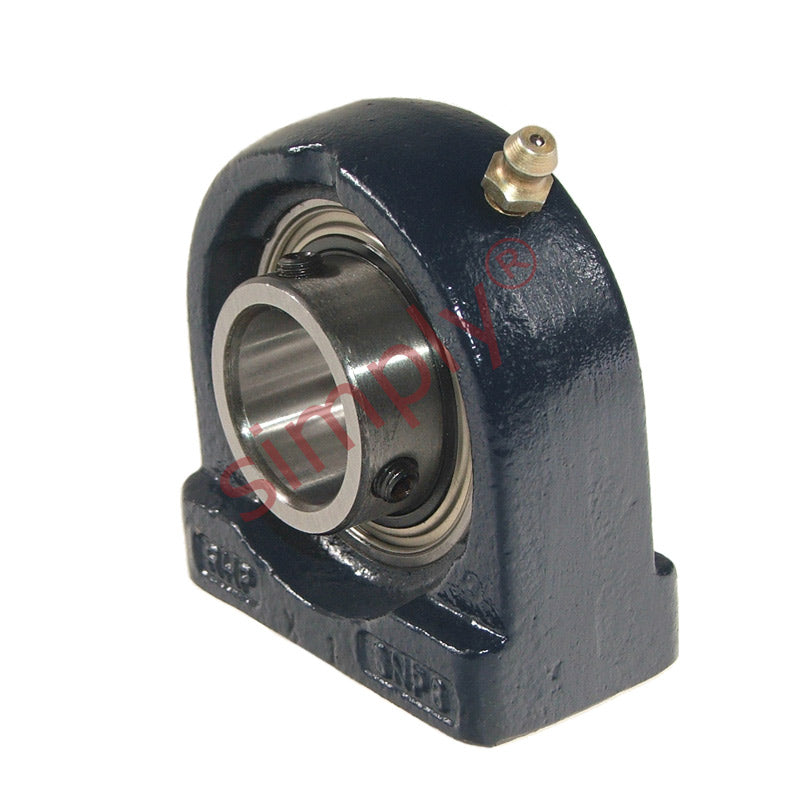

RHP SNP45A Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Grub Screw Flat Back Insert
RHP SNP45A Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Grub Screw Flat Back Insert
Regular price
Rs. 10,214.67
ex VAT
Regular price
Sale price
Rs. 10,214.67
ex VAT
In stock
Price Break
10+
Rs. 9,091.06
19+
Rs. 8,580.32
29+
Rs. 8,478.18
39+
Rs. 8,376.03
49+
Rs. 8,273.88
74+
Rs. 8,171.74
99+
Rs. 7,661.00
199+
Rs. 7,558.86
249+
Rs. 7,456.71
499+
Rs. 7,354.56
999+
Rs. 7,150.27
Couldn't load pickup availability
Description
Description
|
RHP SNP A Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SNP
- Bolt Hole Centres:
- 95.3mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 127mm |
| H | 54mm |
| H1 | 19.5mm |
| H2 | 110mm |
| J | 95.3mm |
| Threads | M12X1.75 |
| A | 48mm |
| A1 | 33mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
