• RHP SNP35DEC Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Full Width Collar Insert
1 1

SKU: SNP35DEC-RHP

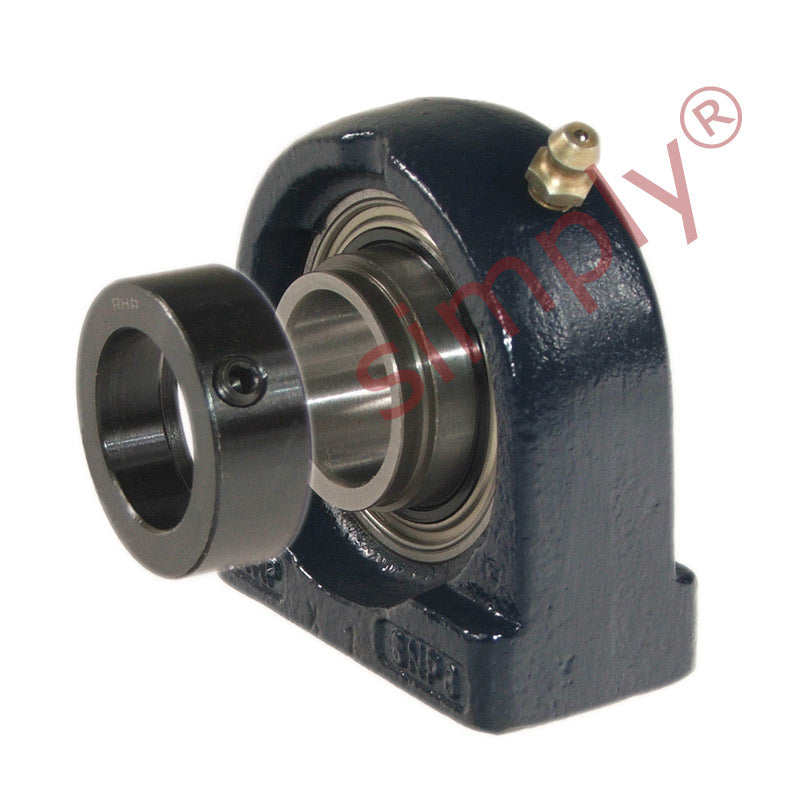

RHP SNP35DEC Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Full Width Collar Insert

RHP SNP35DEC Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Full Width Collar Insert
Rs. 9,113.66
Rs. 9,113.66
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,111.16
19+ Rs. 7,655.47
29+ Rs. 7,564.34
39+ Rs. 7,473.20
49+ Rs. 7,382.06
74+ Rs. 7,290.93
99+ Rs. 6,835.25
199+ Rs. 6,744.11
249+ Rs. 6,652.97
499+ Rs. 6,561.84
999+ Rs. 6,379.56
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP DEC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, small footprint, full width bearing insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SNP
Bolt Hole Centres:
82.6mm

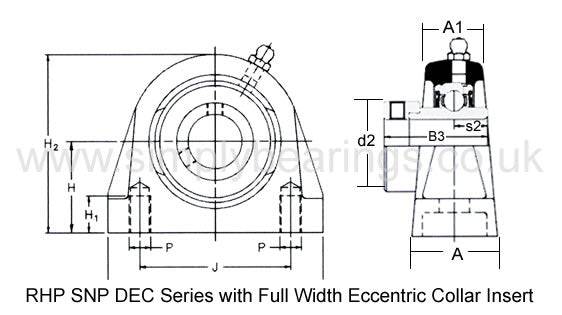

Technical
Bore 35mm
L 110mm
H 47.6mm
H1 19.5mm
H2 95.6mm
J 82.6mm
Threads M10x1.50
A 45mm
A1 30mm
B3 51.18mm
s2 18.89mm
d2 55.58mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 2.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
