SKU: SNP30A-RHP

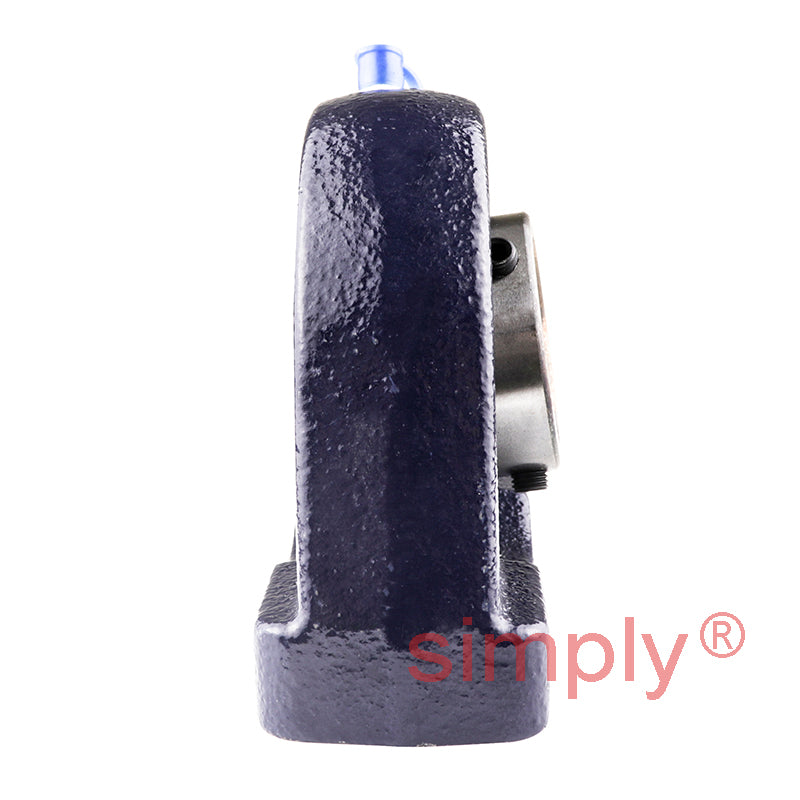

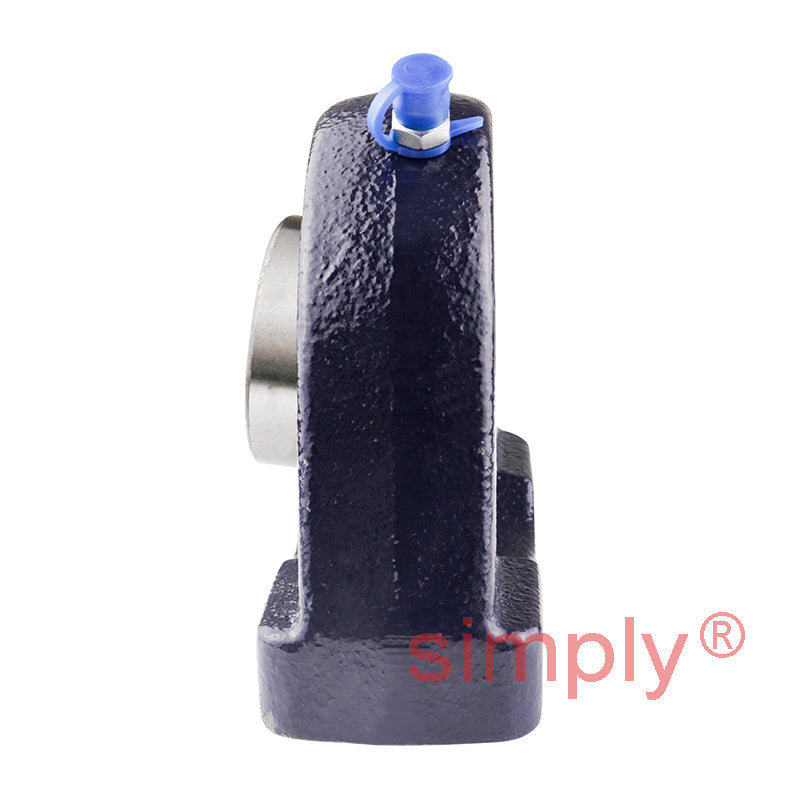

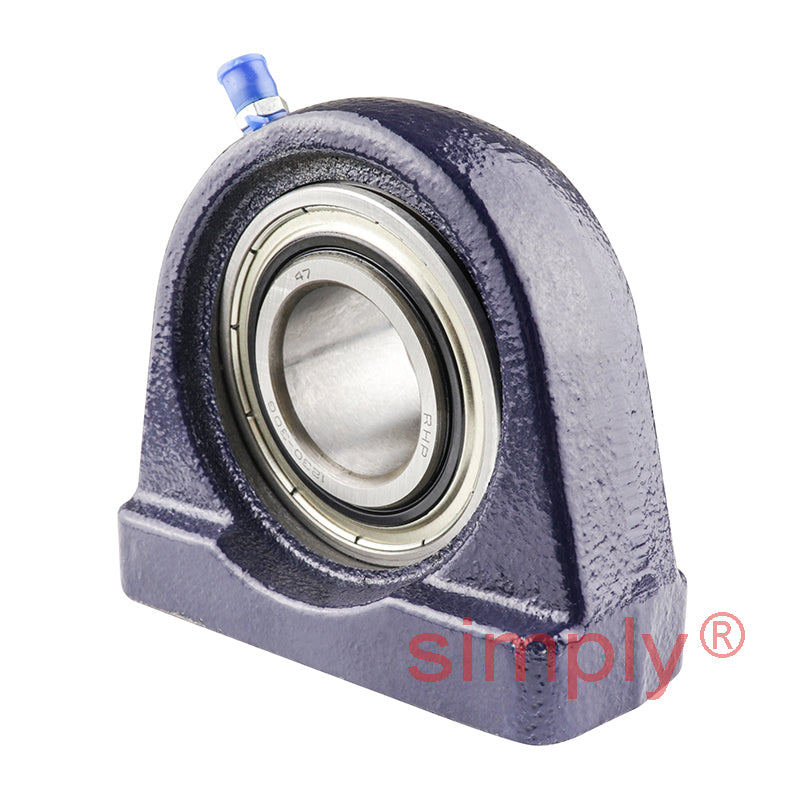

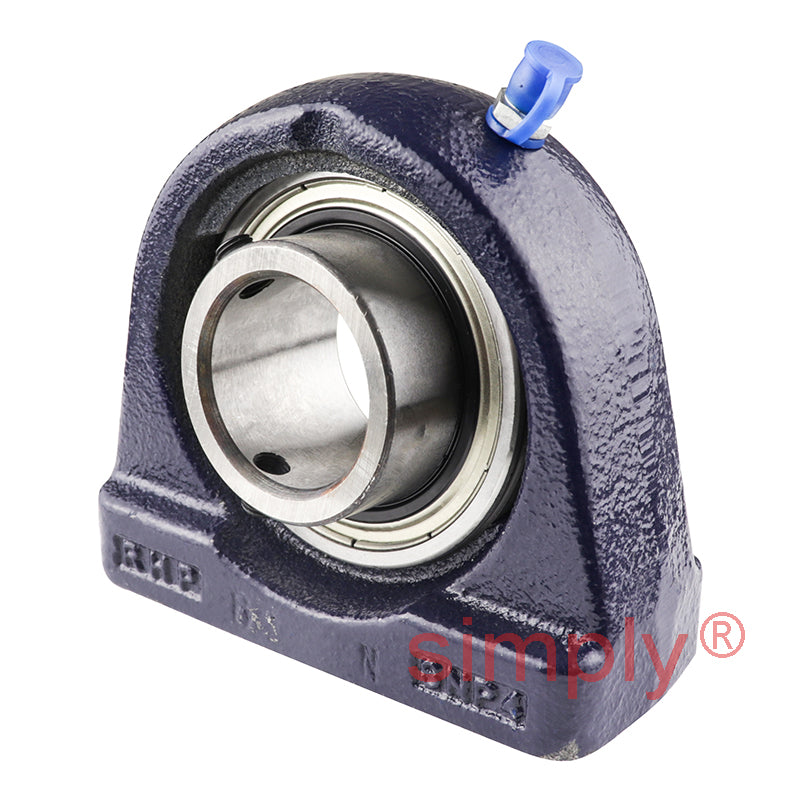

RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
RHP SNP30A Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Flat Back Insert
Regular price
Rs. 6,778.97
ex VAT
Regular price
Sale price
Rs. 6,778.97
ex VAT
In stock
Price Break
10+
Rs. 6,033.28
19+
Rs. 5,694.33
29+
Rs. 5,626.55
39+
Rs. 5,558.76
49+
Rs. 5,490.97
74+
Rs. 5,423.18
99+
Rs. 5,084.23
199+
Rs. 5,016.44
249+
Rs. 4,948.65
499+
Rs. 4,880.86
999+
Rs. 4,745.28
Couldn't load pickup availability
Description
Description
|
RHP SNP A Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SNP
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 96mm |
| H | 42.9mm |
| H1 | 16.5mm |
| H2 | 83.9mm |
| J | 76.2mm |
| Threads | M10x1.50 |
| A | 40mm |
| A1 | 28mm |
| B1 | 31.21mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
