SKU: SNP3/4-RHP

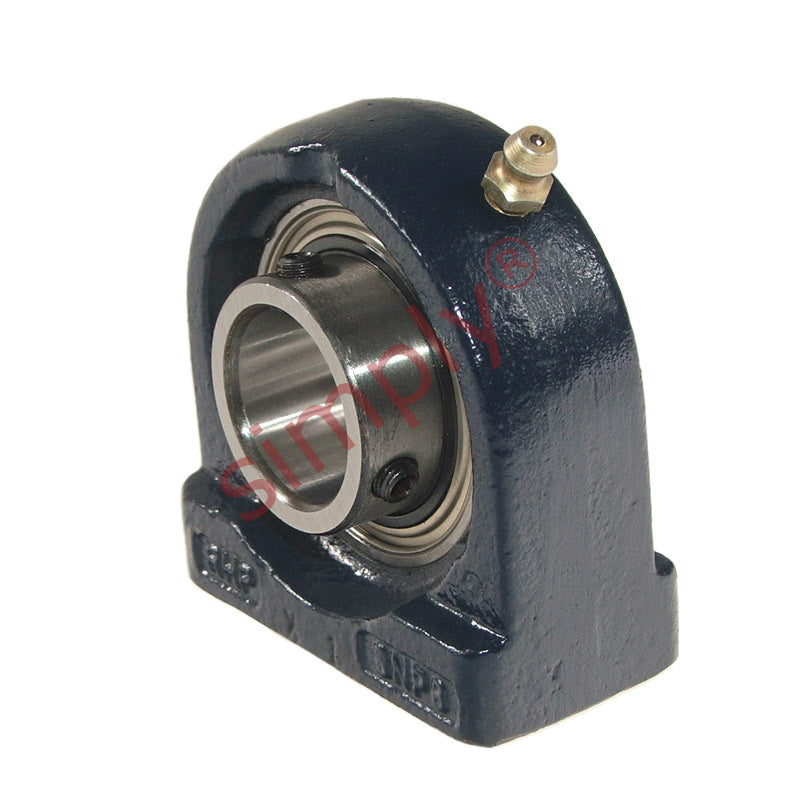

RHP SNP3/4 Threaded Base Small Footprint Pillow / Plummer Block and 3/4 inch Bore Grub Screw Full Width Insert
RHP SNP3/4 Threaded Base Small Footprint Pillow / Plummer Block and 3/4 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 5,090.87
ex VAT
Regular price
Sale price
Rs. 5,090.87
ex VAT
In stock
Price Break
10+
Rs. 4,530.87
19+
Rs. 4,276.33
29+
Rs. 4,225.42
39+
Rs. 4,174.51
49+
Rs. 4,123.60
74+
Rs. 4,072.70
99+
Rs. 3,818.15
199+
Rs. 3,767.24
249+
Rs. 3,716.34
499+
Rs. 3,665.43
999+
Rs. 3,563.61
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SNP
- Bolt Hole Centres:
- 50.8mm = 2 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.559 inch |
| H | 1.311 inch |
| H1 | 0.531 inch |
| H2 | 2.591 inch |
| J | 2 inch |
| Threads | 3/8-16 UNC |
| A | 1.26 inch |
| A1 | 0.886 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
