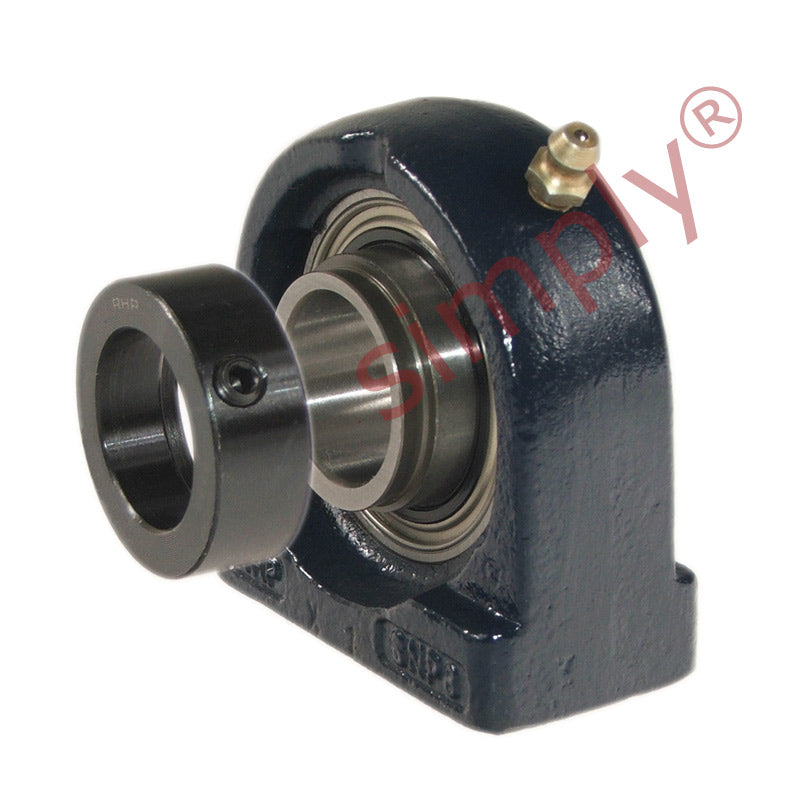

• RHP SNP25EC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Flat Back Collar Insert
1 1

SKU: SNP25EC-RHP

RHP SNP25EC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Flat Back Collar Insert

RHP SNP25EC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Flat Back Collar Insert
Rs. 5,849.44 ex VAT
Rs. 5,849.44 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,206.00
19+ Rs. 4,913.53
29+ Rs. 4,855.04
39+ Rs. 4,796.54
49+ Rs. 4,738.05
74+ Rs. 4,679.55
99+ Rs. 4,387.08
199+ Rs. 4,328.59
249+ Rs. 4,270.09
499+ Rs. 4,211.60
999+ Rs. 4,094.61
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, small footprint, flat back bearing insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
SNP
Bolt Hole Centres:
50.8mm
Technical
Bore 25mm
L 80mm
H 36.5mm
H1 13.5mm
H2 71.5mm
J 50.8mm
Threads M10x1.50
A 36mm
A1 25mm
B2 30.92mm
s1 7.57mm
d2 38.1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
