SKU: SNP1.1/4R-RHP

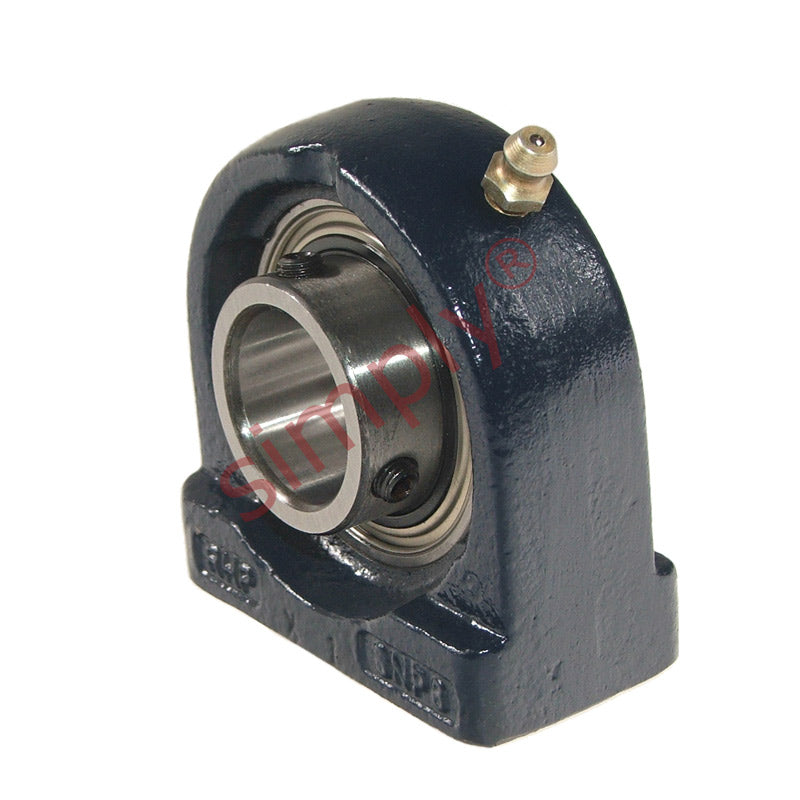

RHP SNP1-1/4R Threaded Base Small Footprint Pillow / Plummer Block and 1-1/4 inch Bore Grub Screw Full Width Insert
RHP SNP1-1/4R Threaded Base Small Footprint Pillow / Plummer Block and 1-1/4 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 7,190.54
ex VAT
Regular price
Sale price
Rs. 7,190.54
ex VAT
In stock
Price Break
10+
Rs. 6,399.58
19+
Rs. 6,040.05
29+
Rs. 5,968.15
39+
Rs. 5,896.24
49+
Rs. 5,824.34
74+
Rs. 5,752.43
99+
Rs. 5,392.91
199+
Rs. 5,321.00
249+
Rs. 5,249.09
499+
Rs. 5,177.19
999+
Rs. 5,033.38
Couldn't load pickup availability
Description
Description
|
RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SNP
- Bolt Hole Centres:
- 76.2mm = 3 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.78 inch |
| H | 1.689 inch |
| H1 | 0.65 inch |
| H2 | 3.303 inch |
| J | 3 inch |
| Threads | 7/16-14 UNC |
| A | 1.575 inch |
| A1 | 1.122 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
