SKU: SNLN3026-SKF

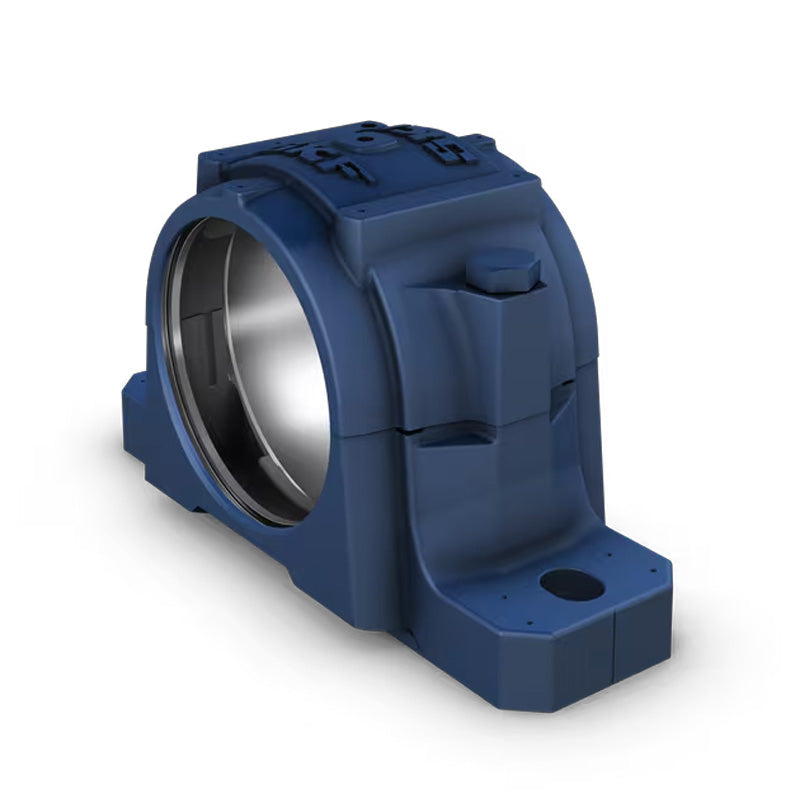

SKF SNLN3026 Cast Iron Split Pillow Block Housing
SKF SNLN3026 Cast Iron Split Pillow Block Housing
Regular price
Rs. 74,417.31
Regular price
Sale price
Rs. 74,417.31
Taxes included.
In stock
Price Break
10+
Rs. 66,231.41
19+
Rs. 62,510.54
29+
Rs. 61,766.37
39+
Rs. 61,022.19
49+
Rs. 60,278.02
74+
Rs. 59,533.85
99+
Rs. 55,812.98
199+
Rs. 55,068.81
249+
Rs. 54,324.64
499+
Rs. 53,580.46
999+
Rs. 52,092.12
Description
Description
|
SKF SNLN Split Plummer Block Housings: SNLN plummer block housings are split housings designed for spherical roller bearings in the 230 series, consisting of a cap and base, with a eye-bolt in the cap and two cast holes for attachment bolts. Made of grey cast iron, SNLN housings are painted black using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). SNLN plummer block housings are dimensionally interchangeable with earlier SN 30 housings. Benefits: Simple mounting, good heat dissipation, grease guiding system. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 350mm
Technical
Technical
| da | 115mm |
|---|---|
| Ca | 79mm |
| Da | 200mm |
| A | 175mm |
| A1 | 120mm |
| H | 242mm |
| H1 | 125mm |
| H2 | 45mm |
| J | 350mm |
| L | 410mm |
| N | 32mm |
| N1 | 26mm |
| J6 | 378mm |
| J7 | 44mm |
| N4 max | 8mm |
| ba | 52mm |
| bc | 76mm |
