SKU: SNL530-SKF

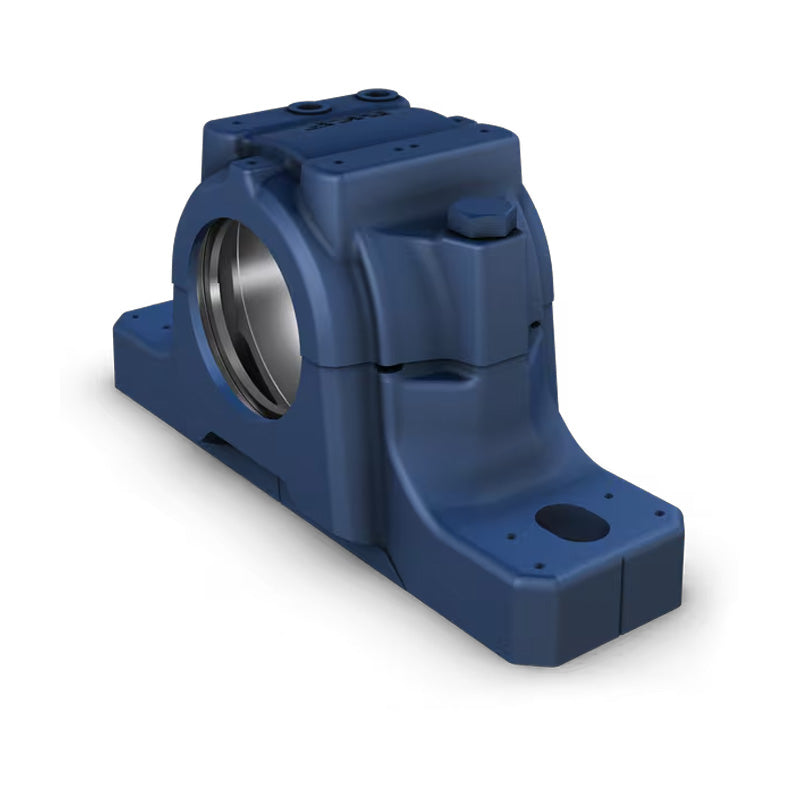

SKF SNL530 Cast Iron Split Pillow Block Housing
SKF SNL530 Cast Iron Split Pillow Block Housing
Regular price
Rs. 140,071.73
Regular price
Sale price
Rs. 140,071.73
Taxes included.
Equivalent to: SE530
In stock
Price Break
10+
Rs. 124,663.84
19+
Rs. 117,660.25
29+
Rs. 116,259.54
39+
Rs. 114,858.82
49+
Rs. 113,458.10
74+
Rs. 112,057.38
99+
Rs. 105,053.80
199+
Rs. 103,653.08
249+
Rs. 102,252.36
499+
Rs. 100,851.65
999+
Rs. 98,050.21
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SE530
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 450.85mm = 17.75 (17-3/4) inch
Technical
Technical
| da | 135mm |
|---|---|
| A | 8-11/16 inch = 220mm |
| A1 | 6-5/16 inch = 160mm |
| A2 | 9-1/2 inch = 241mm |
| A3 | 11-5/8 inch = 295mm |
| H | 12-3/8 inch = 323mm |
| H1 | 6.299 inch = 160mm |
| H2 | 2-3/8 inch = 60mm |
| J max | 17-15/16 inch = 457mm |
| J min | 17-1/2 inch = 443mm |
| J | 17-3/4 inch = 450mm |
| L | 20-7/8 inch = 530mm |
| N | 1-11/16 inch = 42mm |
| N1 | 1-3/8 inch = 35mm |
| G | 1-1/4 inch = 30mm |
| Weight | 49 kg |
