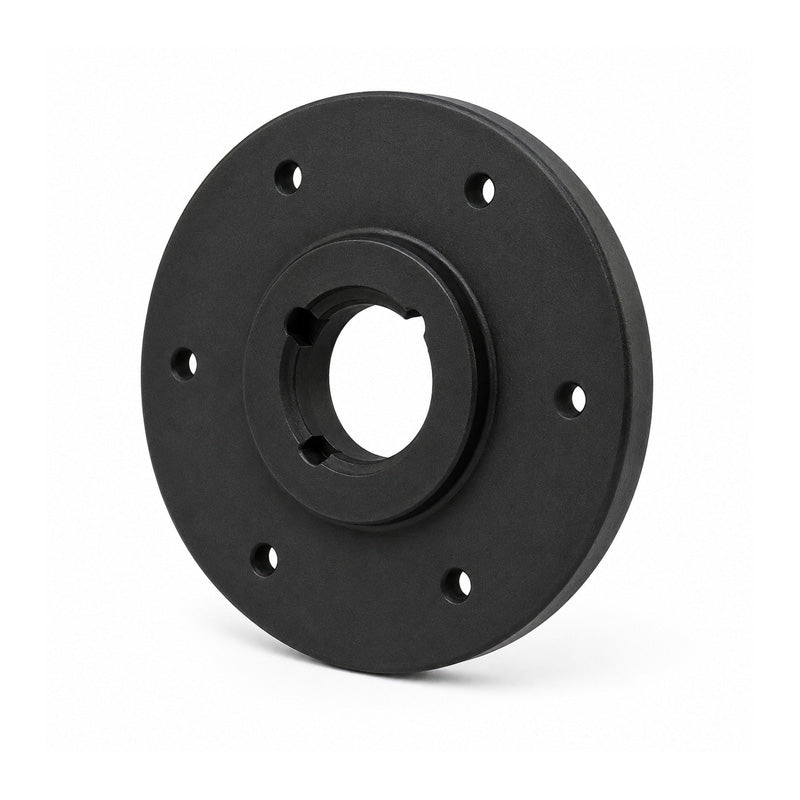

SKF SM30-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF SM30-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 23,195.22
ex VAT
Regular price
Sale price
Rs. 23,195.22
ex VAT
In stock
Price Break
10+
Rs. 20,643.75
19+
Rs. 19,483.98
29+
Rs. 19,252.03
39+
Rs. 19,020.08
49+
Rs. 18,788.13
74+
Rs. 18,556.18
99+
Rs. 17,396.42
199+
Rs. 17,164.46
249+
Rs. 16,932.51
499+
Rs. 16,700.56
999+
Rs. 16,236.65
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 485mm
- Width:
- 51mm
Technical
Technical
| Hub Reference | SM30-2 |
|---|---|
| Bush Number | 3020 |
| A | 485mm |
| B | 250mm |
| C | 340mm |
| D | 51mm |
| E | 13.5mm |
| F/G | 147mm |
| H | 18.75mm |
| J | 8 x 13.5mm |
