SKU: SM16-2-MB

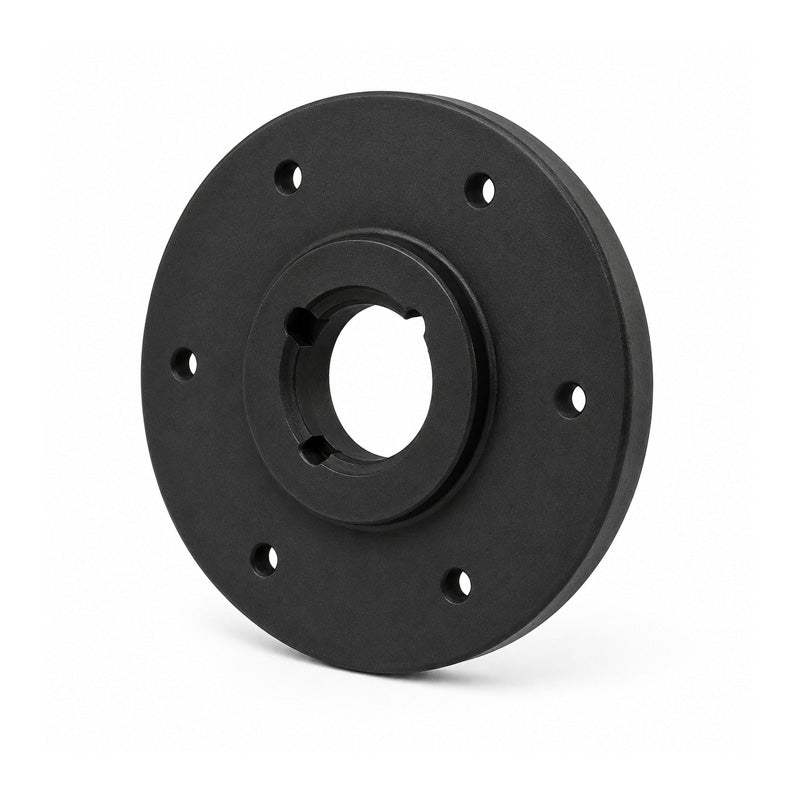

Major Brand SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Brand SM16-2 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
Rs. 4,854.47
Regular price
Sale price
Rs. 4,854.47
Taxes included.
In stock
Price Break
10+
Rs. 4,320.48
19+
Rs. 4,077.75
29+
Rs. 4,029.21
39+
Rs. 3,980.67
49+
Rs. 3,932.12
74+
Rs. 3,883.58
99+
Rs. 3,640.85
199+
Rs. 3,592.31
249+
Rs. 3,543.76
499+
Rs. 3,495.22
999+
Rs. 3,398.13
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 1615
- Outside Diameter:
- 200mm
- Width:
- 38mm
Technical
Technical

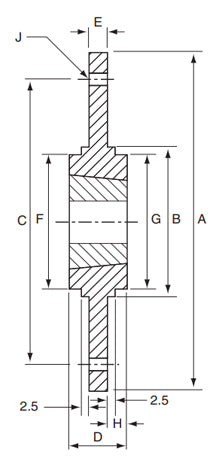

| Hub Reference | SM16-2 |
|---|---|
| Bush Number | 1615 |
| A | 200mm |
| B | 110mm |
| C | 150mm |
| D | 38mm |
| E | 7.5mm |
| F/G | 90mm |
| H | 15.25mm |
| J | 6x7.5mm |
