SKU: SM-UCFC209D1-NTN

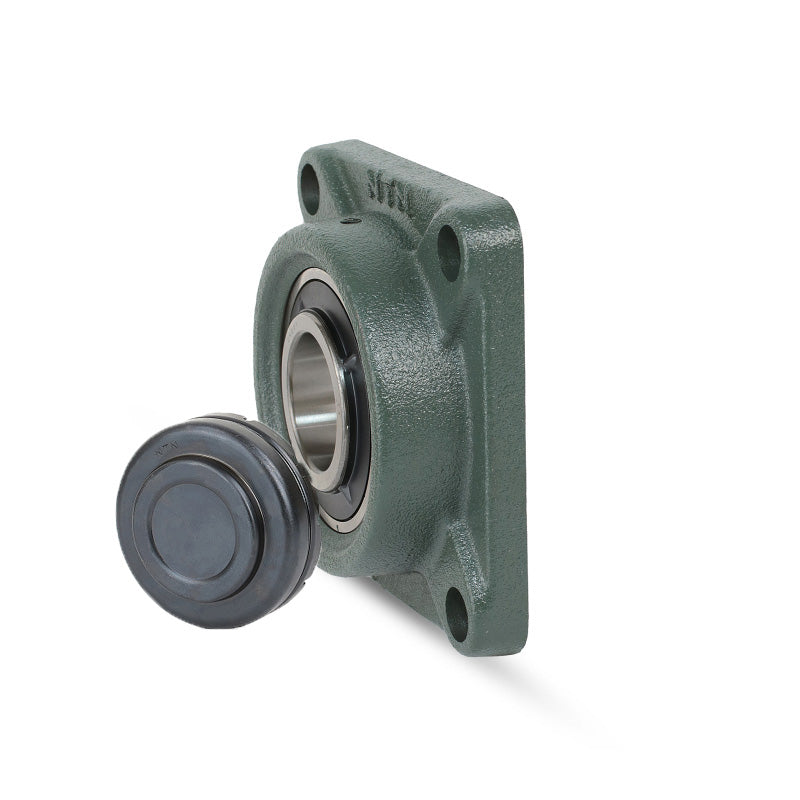

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
Rs. 6,609.61
Regular price
Sale price
Rs. 6,609.61
Taxes included.
In stock
Price Break
10+
Rs. 5,882.55
19+
Rs. 5,552.07
29+
Rs. 5,485.98
39+
Rs. 5,419.88
49+
Rs. 5,353.78
74+
Rs. 5,287.69
99+
Rs. 4,957.21
199+
Rs. 4,891.11
249+
Rs. 4,825.02
499+
Rs. 4,758.92
999+
Rs. 4,626.73
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 93.3mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| L | 160mm |
| J | 132mm |
| (J<sub>1</sub>) | 93.3mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 26mm |
| A | 38mm |
| H<sub>3</sub> | 105mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 63mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2.7 kg |
