SKU: SLG208_NAK
NAK SLG208 Hardened Stainless Sleeve for Shafts 109.910-110.110mm - Allow 7-10 Days
NAK SLG208 Hardened Stainless Sleeve for Shafts 109.910-110.110mm - Allow 7-10 Days
Regular price
Rs. 5,669.95
Regular price
Sale price
Rs. 5,669.95
Taxes included.
In stock
Price Break
5+
Rs. 5,613.25
10+
Rs. 5,386.45
20+
Rs. 5,273.05
50+
Rs. 5,102.96
100+
Rs. 4,989.56
500+
Rs. 4,706.06
1000+
Rs. 3,968.97
Description
Description

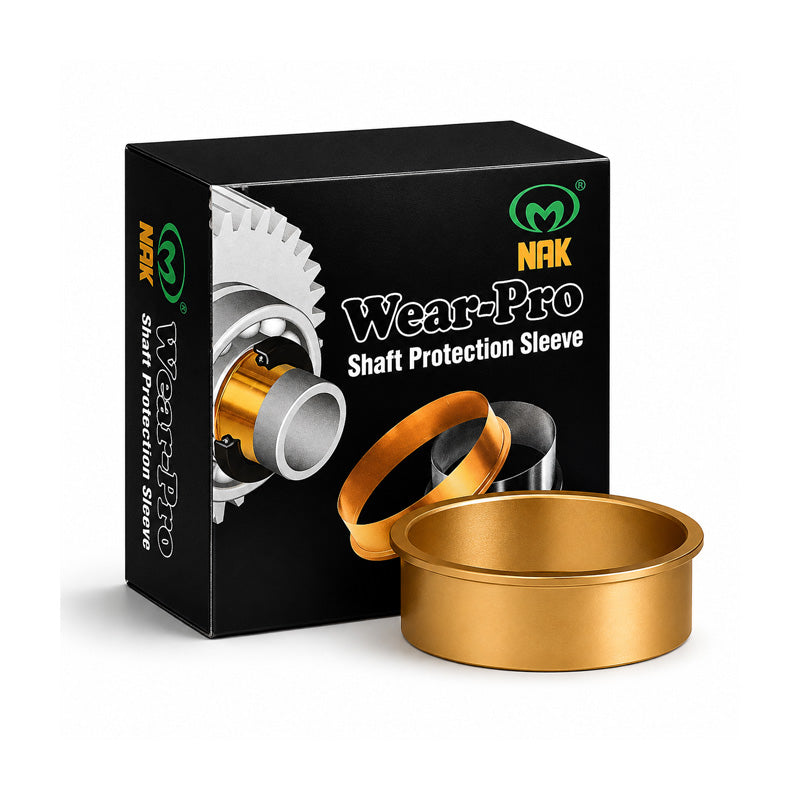

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 16.5mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 109.93mm
- Flange Diameter:
- 125mm
Technical
Technical
| Shaft Diameter Range (A) | 109.910-110.110mm |
|---|---|
| Nominal Shaft Diameter (A) | 109.93mm |
| Flange Diameter (D) | 125mm |
| Width on Shaft (X) | 12.9mm |
| Overall Width (Y) | 16.5mm |
| Installation Depth (Z) | 32mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
