SKU: SLG204_NAK

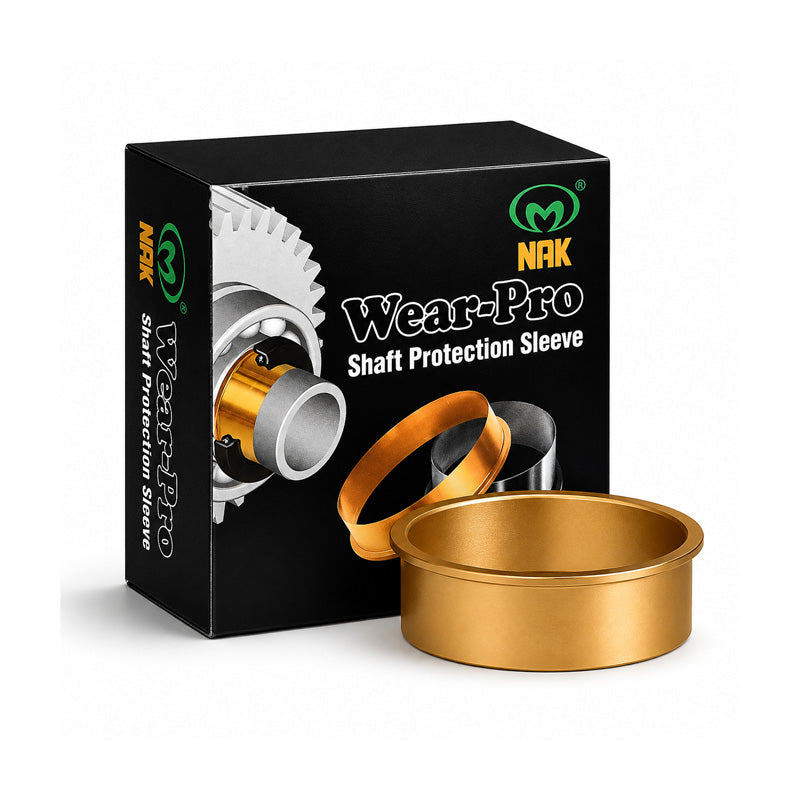

NAK SLG204 Hardened Stainless Sleeve for Shafts 104.900-105.100mm - Allow 7-10 Days
NAK SLG204 Hardened Stainless Sleeve for Shafts 104.900-105.100mm - Allow 7-10 Days
Regular price
Rs. 5,104.11
Regular price
Sale price
Rs. 5,104.11
Taxes included.
In stock
Price Break
5+
Rs. 5,053.07
10+
Rs. 4,848.90
20+
Rs. 4,746.82
50+
Rs. 4,593.70
100+
Rs. 4,491.62
500+
Rs. 4,236.41
1000+
Rs. 3,572.88
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 23.2mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 105mm
- Flange Diameter:
- 113.5mm
Technical
Technical
| Shaft Diameter Range (A) | 104.900-105.100mm |
|---|---|
| Nominal Shaft Diameter (A) | 105mm |
| Flange Diameter (D) | 113.5mm |
| Width on Shaft (X) | 20mm |
| Overall Width (Y) | 23.2mm |
| Installation Depth (Z) | 35mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
