SKU: SLG175_IMP_NAK

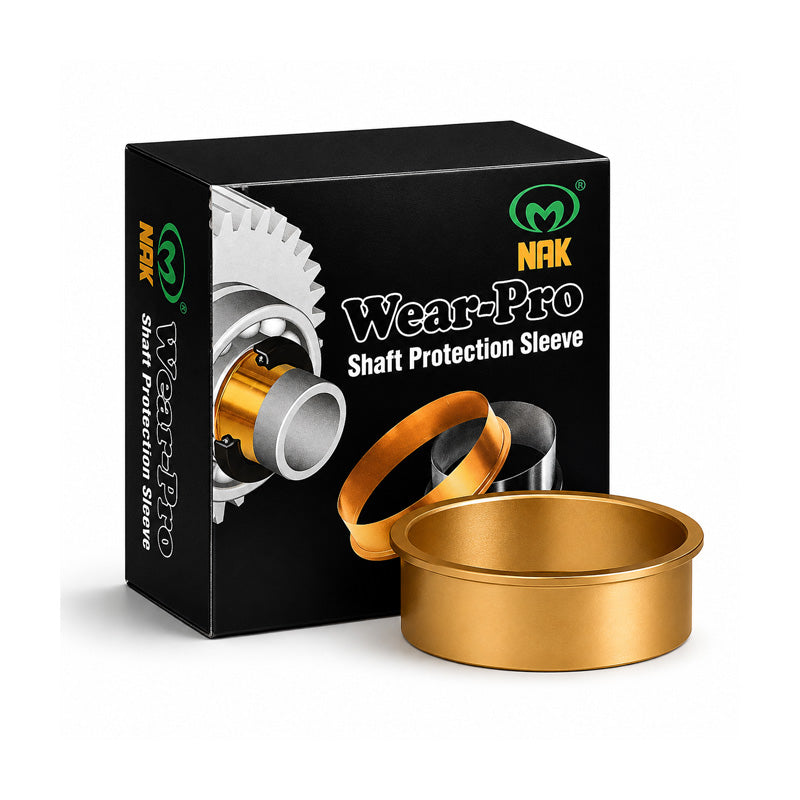

NAK SLG175 Hardened Stainless Sleeve for Shafts 3.500-3.506 inch - Allow 7-10 Days
NAK SLG175 Hardened Stainless Sleeve for Shafts 3.500-3.506 inch - Allow 7-10 Days
Regular price
Rs. 3,967.30
Regular price
Sale price
Rs. 3,967.30
Taxes included.
In stock
Price Break
5+
Rs. 3,927.63
10+
Rs. 3,768.94
20+
Rs. 3,689.59
50+
Rs. 3,570.57
100+
Rs. 3,491.22
500+
Rs. 3,292.86
1000+
Rs. 2,777.11
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.5 inch
- Flange Diameter:
- 3.843 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.500-3.506 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.5 inch |
| Flange Diameter (D) | 3.843 inch |
| Width on Shaft (X) | 0.811 inch |
| Overall Width (Y) | 1 inch |
| Installation Depth (Z) | 1.346 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
