SKU: SLG162_IMP_NAK
NAK SLG162 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
NAK SLG162 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
Regular price
Rs. 3,401.46
Regular price
Sale price
Rs. 3,401.46
Taxes included.
In stock
Price Break
5+
Rs. 3,367.45
10+
Rs. 3,231.39
20+
Rs. 3,163.36
50+
Rs. 3,061.31
100+
Rs. 2,993.28
500+
Rs. 2,823.21
1000+
Rs. 2,381.02
Description
Description

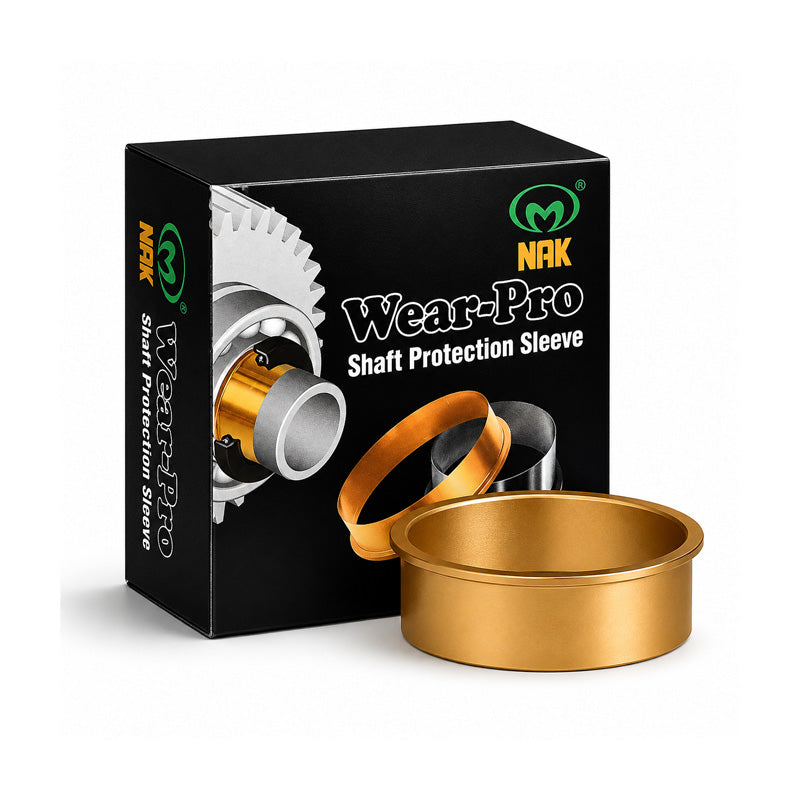

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.72 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.25 inch
- Flange Diameter:
- 3.575 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.250-3.256 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.25 inch |
| Flange Diameter (D) | 3.575 inch |
| Width on Shaft (X) | 0.594 inch |
| Overall Width (Y) | 0.72 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
