SKU: SLG087_IMP_NAK
NAK SLG087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
NAK SLG087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
Regular price
Rs. 2,268.49
Regular price
Sale price
Rs. 2,268.49
Taxes included.
In stock
Price Break
5+
Rs. 2,245.81
10+
Rs. 2,155.07
20+
Rs. 2,109.70
50+
Rs. 2,041.64
100+
Rs. 1,996.27
500+
Rs. 1,882.85
1000+
Rs. 1,587.94
Description
Description

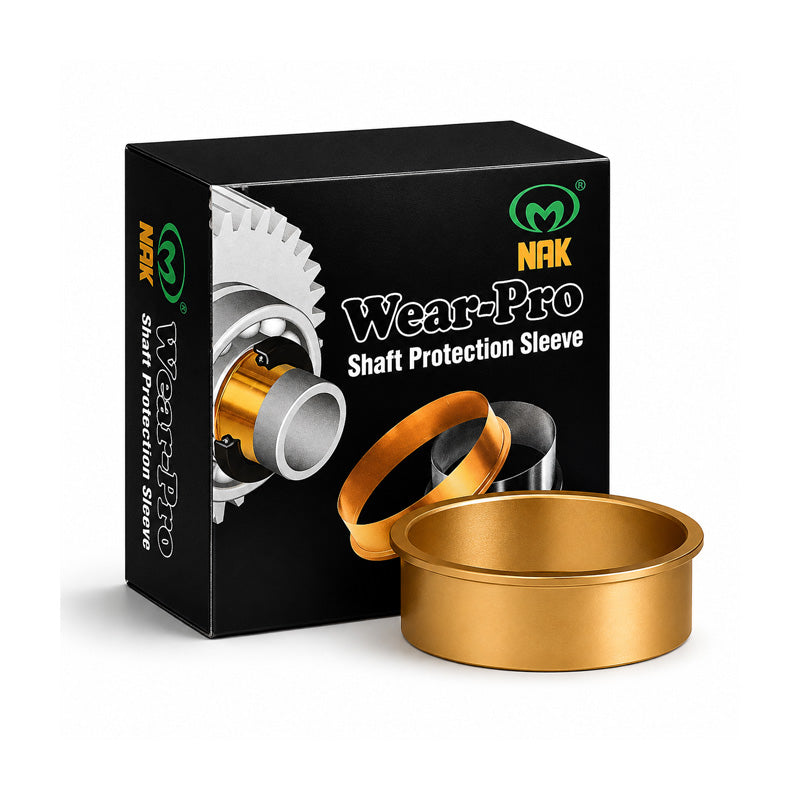

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.689 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.938 inch
- Flange Diameter:
- 2.22 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.934-1.940 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.938 inch |
| Flange Diameter (D) | 2.22 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.689 inch |
| Installation Depth (Z) | 1 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
