SKU: SLG085_NAK

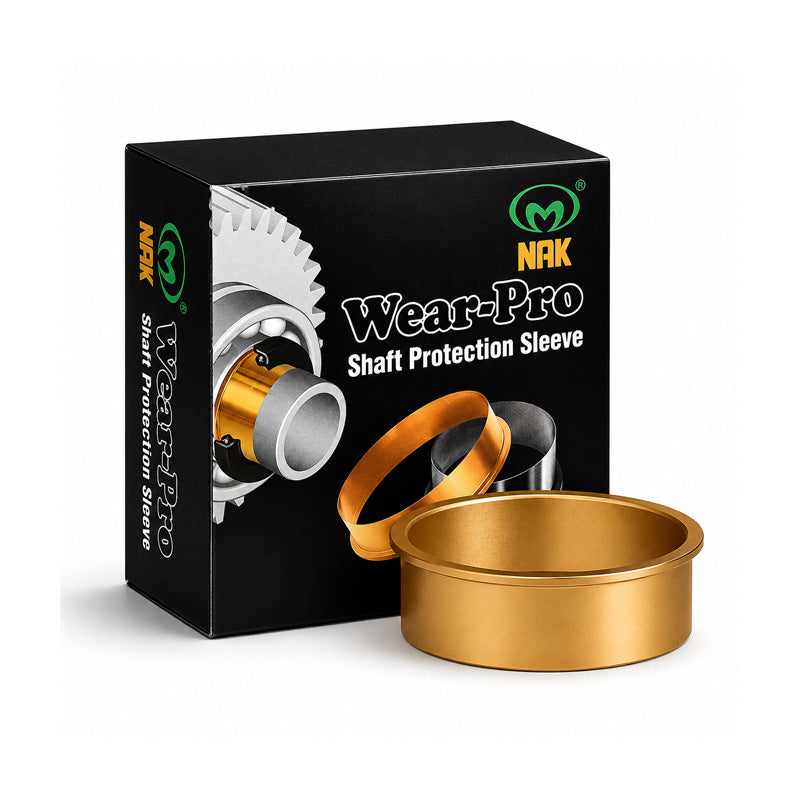

NAK SLG085 Hardened Stainless Sleeve for Shafts 47.930-48.090mm - Allow 7-10 Days
NAK SLG085 Hardened Stainless Sleeve for Shafts 47.930-48.090mm - Allow 7-10 Days
Regular price
Rs. 2,551.41
Regular price
Sale price
Rs. 2,551.41
Taxes included.
In stock
Price Break
5+
Rs. 2,525.90
10+
Rs. 2,423.84
20+
Rs. 2,372.81
50+
Rs. 2,296.27
100+
Rs. 2,245.24
500+
Rs. 2,117.67
1000+
Rs. 1,785.99
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 17mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 48.03mm
- Flange Diameter:
- 56mm
Technical
Technical
| Shaft Diameter Range (A) | 47.930-48.090mm |
|---|---|
| Nominal Shaft Diameter (A) | 48.03mm |
| Flange Diameter (D) | 56mm |
| Width on Shaft (X) | 14mm |
| Overall Width (Y) | 17mm |
| Installation Depth (Z) | 25mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
