SKU: SLG041_NAK

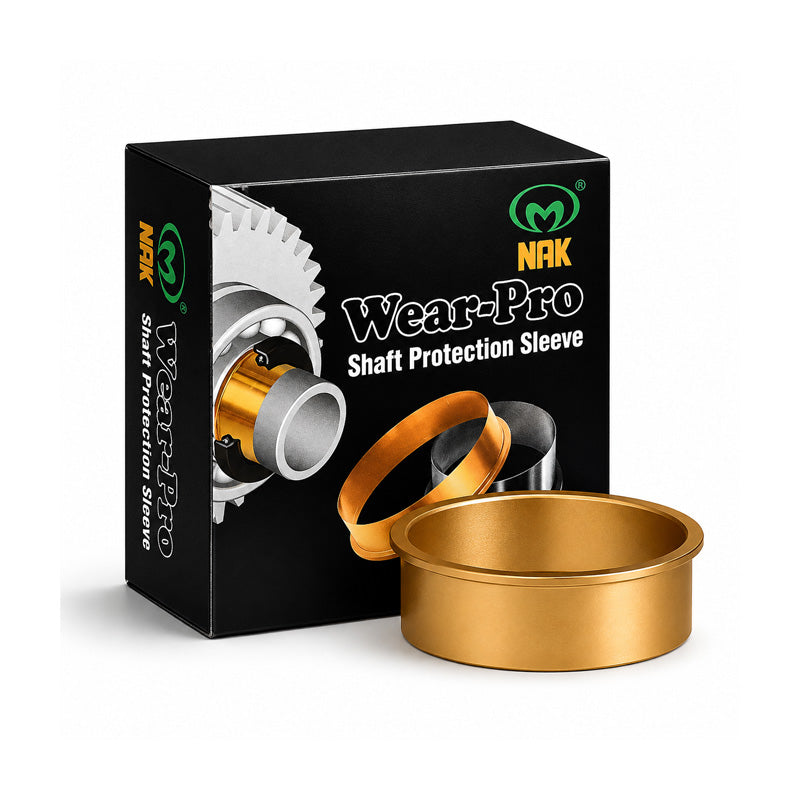

NAK SLG041 Hardened Stainless Sleeve for Shafts 33.220-33.380mm - Allow 7-10 Days
NAK SLG041 Hardened Stainless Sleeve for Shafts 33.220-33.380mm - Allow 7-10 Days
Regular price
Rs. 2,815.23
ex VAT
Regular price
Sale price
Rs. 2,815.23
ex VAT
In stock
Price Break
5+
Rs. 2,787.08
10+
Rs. 2,674.47
20+
Rs. 2,618.16
50+
Rs. 2,533.71
100+
Rs. 2,477.40
500+
Rs. 2,336.64
1000+
Rs. 1,970.66
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 9.5mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 33.35mm
- Flange Diameter:
- 40.6mm
Technical
Technical
| Shaft Diameter Range (A) | 33.220-33.380mm |
|---|---|
| Nominal Shaft Diameter (A) | 33.35mm |
| Flange Diameter (D) | 40.6mm |
| Width on Shaft (X) | 6.3mm |
| Overall Width (Y) | 9.5mm |
| Installation Depth (Z) | 20.7mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
