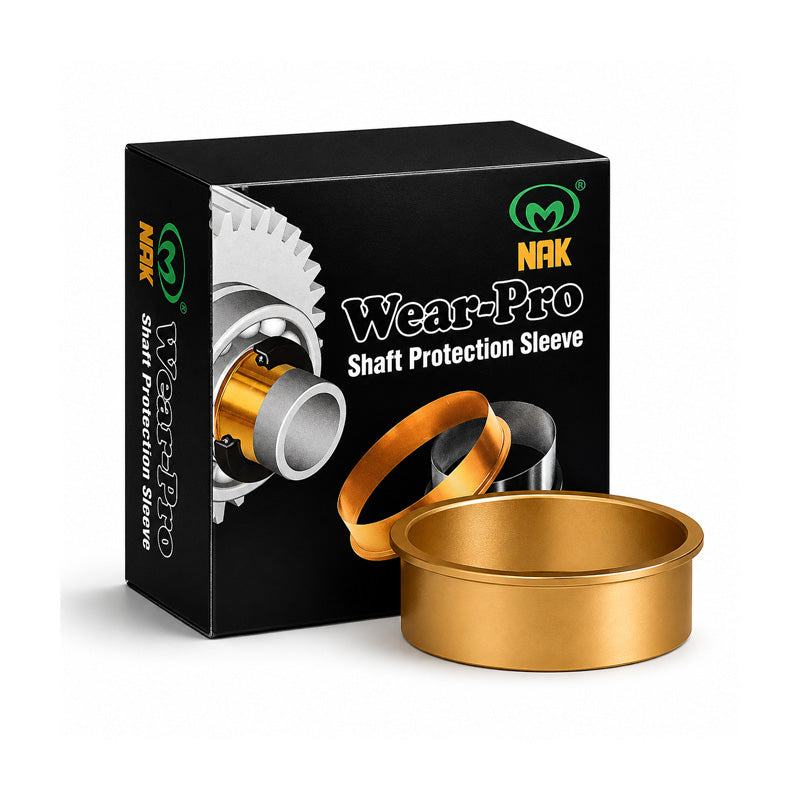

NAK SLG039 Hardened Stainless Sleeve for Shafts 1.257-1.263 inch - Allow 7-10 Days
NAK SLG039 Hardened Stainless Sleeve for Shafts 1.257-1.263 inch - Allow 7-10 Days
Regular price
Rs. 2,265.93
Regular price
Sale price
Rs. 2,265.93
Taxes included.
In stock
Price Break
5+
Rs. 2,243.27
10+
Rs. 2,152.63
20+
Rs. 2,107.31
50+
Rs. 2,039.34
100+
Rs. 1,994.02
500+
Rs. 1,880.72
1000+
Rs. 1,586.15
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.437 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.26 inch
- Flange Diameter:
- 1.5 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.257-1.263 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.26 inch |
| Flange Diameter (D) | 1.5 inch |
| Width on Shaft (X) | 0.315 inch |
| Overall Width (Y) | 0.437 inch |
| Installation Depth (Z) | 0.689 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
