• RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
1 1

SKU: SLC30EC-RHP

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
Rs. 6,404.12 ex VAT
Rs. 6,404.12 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,699.67
19+ Rs. 5,379.46
29+ Rs. 5,315.42
39+ Rs. 5,251.38
49+ Rs. 5,187.34
74+ Rs. 5,123.30
99+ Rs. 4,803.09
199+ Rs. 4,739.05
249+ Rs. 4,675.01
499+ Rs. 4,610.97
999+ Rs. 4,482.88
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

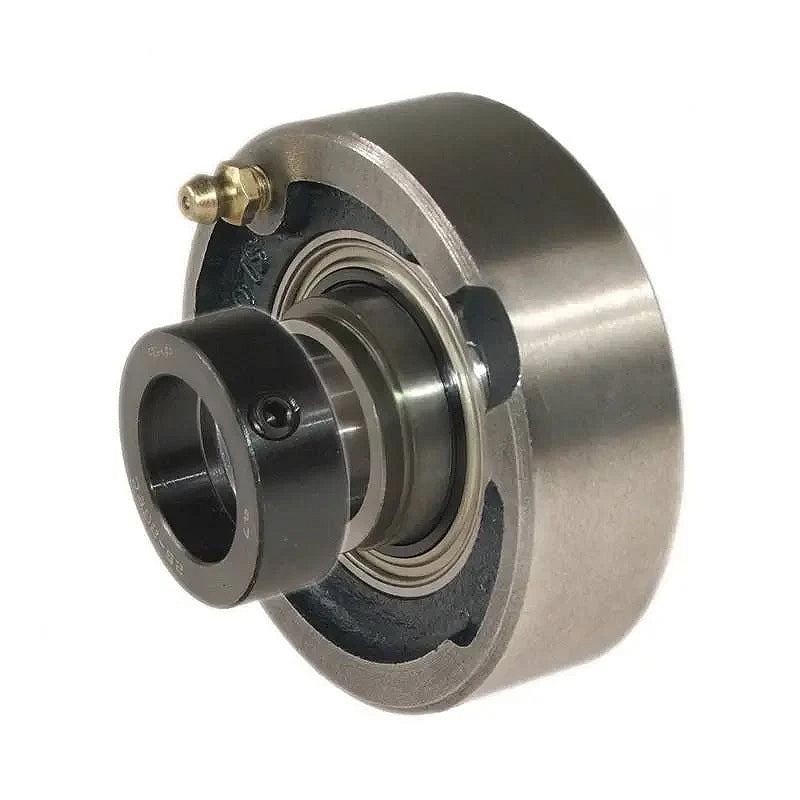

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Outside Diameter:
88.93mm
Style:
SLC
Technical
Bore 30mm
L 88.925mm
A 27.78mm
A2 40.56mm
B2 35.68mm
s1 9.04mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
