SKU: SLC3/4-RHP

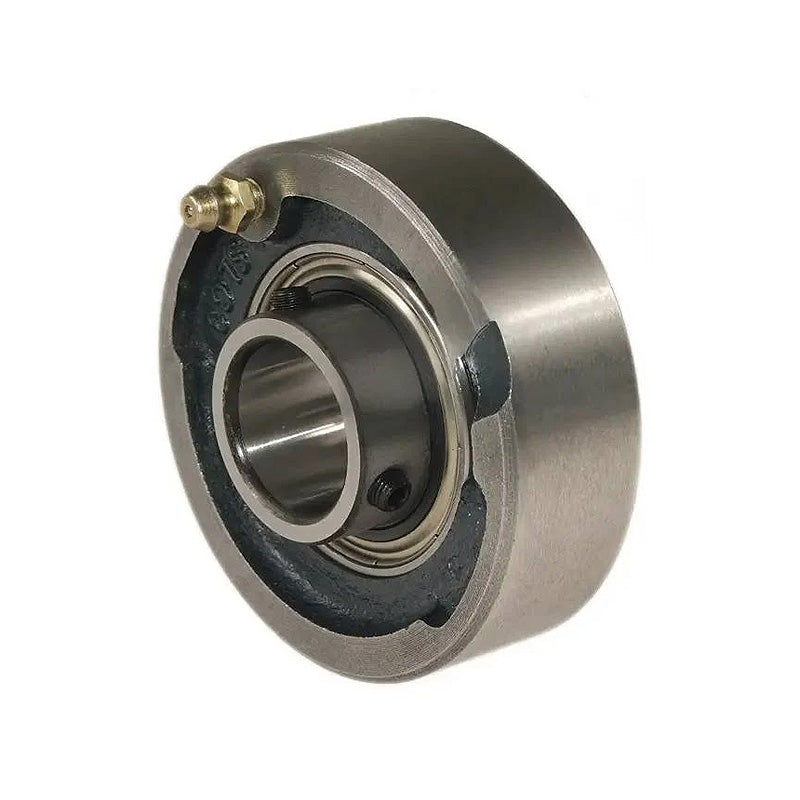

RHP SLC3/4 Cast Iron Cartridge Unit with 3/4 inch Bore Insert 74.64mm Outside Diameter
RHP SLC3/4 Cast Iron Cartridge Unit with 3/4 inch Bore Insert 74.64mm Outside Diameter
Regular price
Rs. 4,395.63
ex VAT
Regular price
Sale price
Rs. 4,395.63
ex VAT
In stock
Price Break
10+
Rs. 3,912.11
19+
Rs. 3,692.33
29+
Rs. 3,648.37
39+
Rs. 3,604.42
49+
Rs. 3,560.46
74+
Rs. 3,516.50
99+
Rs. 3,296.72
199+
Rs. 3,252.77
249+
Rs. 3,208.81
499+
Rs. 3,164.85
999+
Rs. 3,076.94
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 74.64mm
- Style:
- SLC
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.9385 inch |
| A | 0.875 inch |
| A1 | 1.157 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
